Strong Points
Function
Insulating busbar supports to mount copper or aluminium busbars, tested to hold them securely during a short circuit.
Conformity to standards
- IEC 61439-1
- IEC 60865-1
References

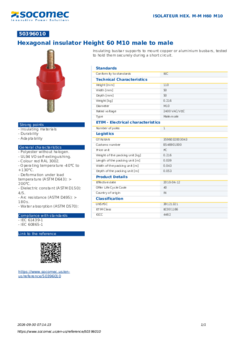

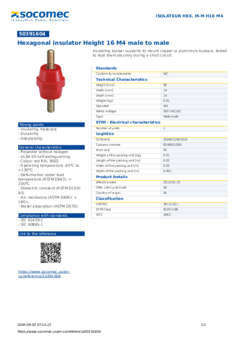

Male to male hexagonal insulator is available in 9 versions
| Item | Rated voltage | Select |
|---|---|---|
| 50393510 | 1400 VAC/DC | |
| 50393508 | 1400 VAC/DC | |
| 50395010 | 2000 VAC/DC | |
| 50395008 | 2000 VAC/DC | |
| 50396010 | 2400 VAC/VDC | |
| 50391604 | 500 VAC/DC | |
| 50391605 | 500 VAC/DC | |
| 50392505 | 500 VAC/DC | |
| 50392506 | 500 VAC/DC |
Advantages
Insulating materials
Our range of SB P flat busbar supports with fixed interphase is made from insulating materials. The UL94 VO material poses no risks in terms of clearance and creepage distances.
Durability
Most bar supports have an M8 screw connection which provides outstanding robustness to the entire busbar structure.
Adaptability
The distance between the bar support attachment points is compatible with all commercially available enclosures.
