Allows use of standard solid, stranded and fine wire strands with use of compression sleeve.
From 90 A to 255 A.

Conformity to standards

UL 1953, Guide QPQS, File E500778
UL 1059, CSA-C22.2 No. 128, Guide XCFR, File E500524
IEC 61439-1
IEC 60947-7-1

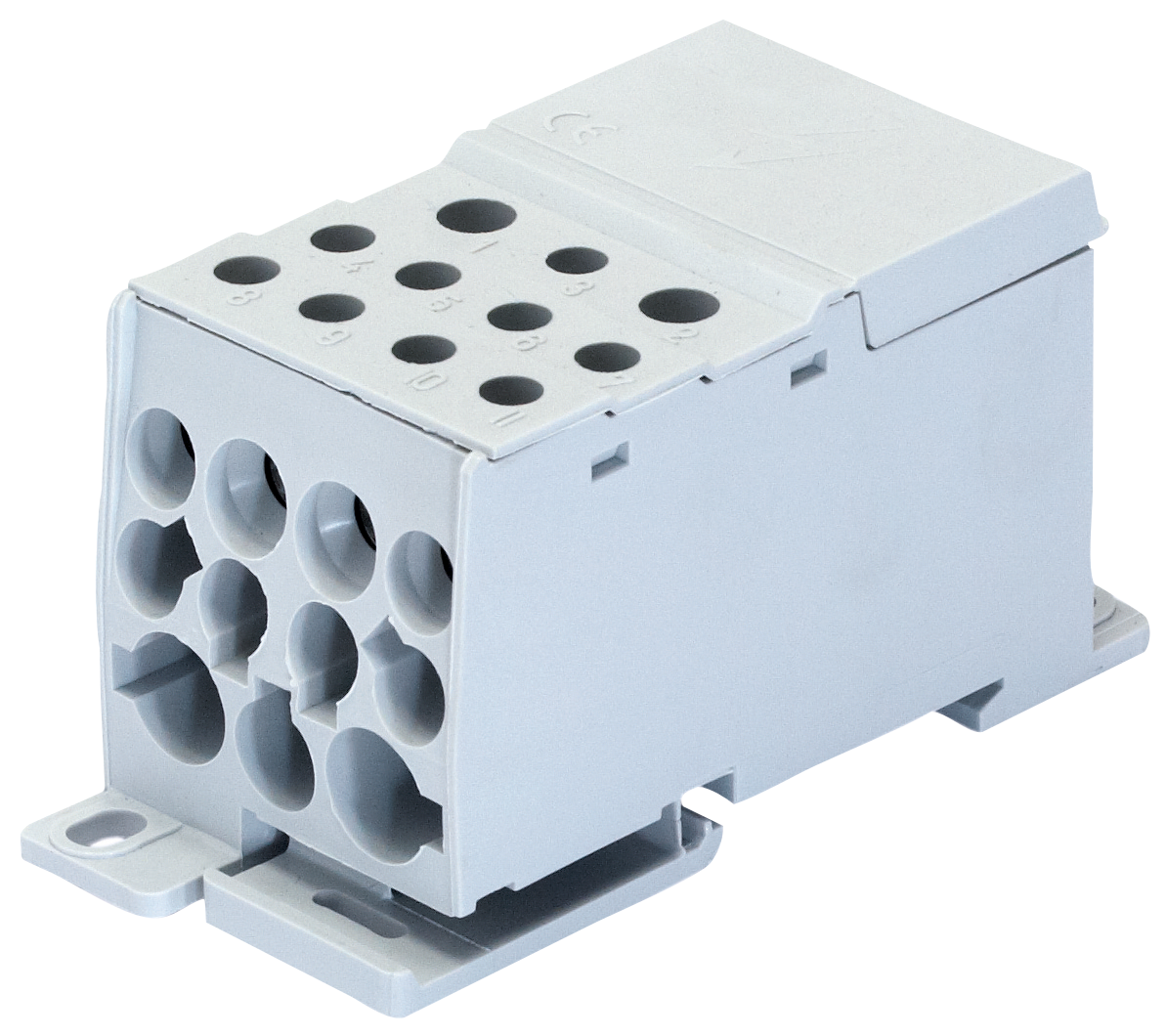

Power distribution blocks single pole UR is available in X versions

Item Rated current [A] Select
54100025 250


IP20 finger safe protection

- IP20 rated
- Finger-safe design provides touch safe protection from live parts

Wide range

The extent of the range makes it possible to find the distribution system adapted to its needs.

Easy integration

The compact design of the different distribution blocks allows an easier integration into the equipment and allows for either DIN rail mounting on direct panel mounting.

UL & IEC range

The range of distribution blocks comply to the UL standards & the IEC standards.
