Strong Points

Function

Insulating busbar supports are for mounting busbars on a board.

Conformity to standards

IEC 61439-1
IEC 60865-1

References

SB P 30 busbar support is available in 2 versions

Item Section Number of poles Rated voltage Busbar distance Select
50230310 3x100 3 1000 Vac 185

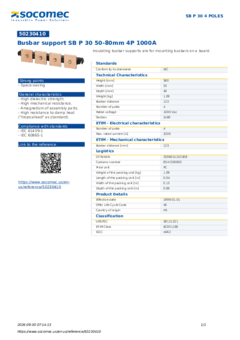

50230410 3x80 4 1000 Vac 123

Advantages

Space-saving

Flat mounted multipolar busbar supports are suitable for switchboard applications where space and footprint are paramount.

Looking for an IEC-certified product? Click here to explore our full range!

Documentation

Visit resource center
  • PDF
    Catalog pages EN-US
    3.53 MB
    BUSBAR SUPPORTS
    Download
    Select
  • Mechanical view EN-US
    SB P 30 3 POLES CAD 50230310
    Ask
  • Mechanical view EN-US
    SB P 30 4 POLES CAD 50230410
