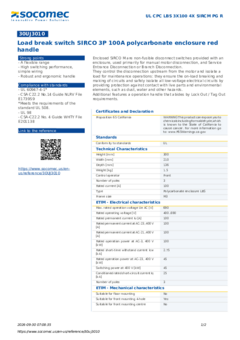

Function
Enclosed SIRCO M are non-fusible disconnect switches provided with an enclosure, used primarily for manual motor disconnection, and Service Entrance Disconnection or Branch Disconnection.
They control the disconnection upstream from the motor and isolate a load for maintenance operations: they ensure the on-load breaking and making of circuits and safely isolate all low-voltage electrical circuits by providing protection against contact with live parts and environmental elements, such as dust, water and other hazards.
Additional features a operation handle that abides by Lock Out / Tag Out requirements.
=-=-=-=-=-=- System =-=-=-=-=-=-
| Fill rate E-Order Common | 83 |
|---|---|
| Fill rate E-Order Selection | 100 |
Standards
| Conformity to standards | UL |
|---|
Technical Characteristics
| Control operator | Front |
|---|---|
| Number of poles | 3 |
| Rated current [A] | 100 |
| Type | Polycarbonate enclosure LBS |
| Frame size | M3 |
ETIM - Electrical characteristics
| Max. rated operation voltage Ue AC [V] | 690 |
|---|---|
| Rated operating voltage [V] | 400..690 |
| Rated permanent current Iu [A] | 100 |
| Rated permanent current at AC-23, 400 V [A] | 100 |
| Rated permanent current at AC-21, 400 V [A] | 100 |
| Rated operation power at AC-3, 400 V [kW] | 100 |
| Rated short-time withstand current lcw [kA] | 2.75 |
| Rated operation power at AC-23, 400 V [kW] | 45 |
| Switching power at 400 V [kW] | 45 |
| Conditioned rated short-circuit current Iq [kA] | 25 |
| Number of poles | 3 |
ETIM - Mechanical characteristics
| Suitable for floor mounting | No |
|---|---|
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Colour control element | Red |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA) | 4X |
ETIM - Technical features
| Version as main switch | No |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | Yes |
| Version as reversing switch | No |
| Number of switches | 1 |
| Motor drive optional | No |
| Motor drive integrated | No |
| Voltage release optional | No |
| Device construction | Complete device in housing |
| Type of control element | Door coupling rotary drive |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
Logistics
| GTIN/EAN | 3596032966195 |
|---|---|
| Customs number | 8537109899 |
| Price unit | PC |
| Weight of the packing unit | 2.8 |
| Length of the packing unit | 0.26 |
| Width of the packing unit | 0.4 |
| Depth of the packing unit | 0.3 |
Product Details
| Effective date | 2016-05-25 |
|---|---|
| Country of origin | FR |
| Discount Policy | 1CM20 |
| Discount Policy Label | ENCLOSED LBS |
| Length of the product unit | 0.3 |
| Width of the product unit | 0.21 |
| Depth of the product unit | 0.136 |
| Weight | 1.5 |
Classification
| UNSPSC | 39122205 |
|---|---|
| ETIM Class | EC000216 |
| IGCC | 5176 |
