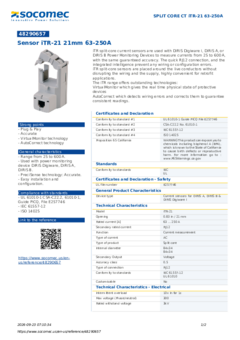

U3Ryb25nIFBvaW50cw==

  • UGx1ZyAmIFBsYXk=

  • QWNjdXJhdGU=

  • VmlydHVhbE1vbml0b3IgdGVjaG5vbG9neQ==

  • QXV0b0NvcnJlY3QgdGVjaG5vbG9neQ==

RnVuY3Rpb24=

aVRSIHNwbGl0LWNvcmUgY3VycmVudCBzZW5zb3JzIGFyZSB1c2VkIHdpdGggRElSSVMgRGlnaXdhcmUgSSwgRElSSVMgQSwgb3IgRElSSVMgQiBQb3dlciBNb25pdG9yaW5nIERldmljZXMgdG8gbWVhc3VyZSBjdXJyZW50cyBmcm9tIDI1IHRvIDYwMCBBLCB3aXRoIHRoZSBzYW1lIGd1YXJhbnRlZWQgYWNjdXJhY3kuIFRoZSBxdWljayBSSjEyIGNvbm5lY3Rpb24sIGFuZCB0aGUgaW50ZWdyYXRlZCBpbnRlbGxpZ2VuY2UgcHJldmVudCBhbnkgd2lyaW5nIG9yIGNvbmZpZ3VyYXRpb24gZXJyb3JzLjxiciAvPg0KIGlUUiBzcGxpdC1jb3JlIHNlbnNvcnMgYXJlIHBsYWNlZCBhcm91bmQgdGhlIGxpdmUgY29uZHVjdG9ycyB3aXRob3V0IGRpc3J1cHRpbmcgdGhlIHdpcmluZyBhbmQgdGhlIHN1cHBseSwgaGlnaGx5IGNvbnZlbmllbnQgZm9yIHJldHJvZml0IGFwcGxpY2F0aW9ucy48YnIgLz4NCiBUaGUgaVRSIHJhbmdlIG9mZmVycyBvdXRzdGFuZGluZyB0ZWNobm9sb2dpZXM6PGJyIC8+DQogVmlydHVhbE1vbml0b3Igd2hpY2ggZ2l2ZXMgdGhlIHJlYWwgdGltZSBwaHlzaWNhbCBzdGF0ZSBvZiBwcm90ZWN0aXZlIGRldmljZXM8YnIgLz4NCiBBdXRvQ29ycmVjdCB3aGljaCBkZXRlY3RzIHdpcmluZyBlcnJvcnMgYW5kIGNvcnJlY3RzIHRoZW0gdG8gZ3VhcmFudGVlIGNvbnNpc3RlbnQgcmVhZGluZ3Mu

Certificates and Declaration

Conformity to standard #1 UL 61010-1 Guide PICQ File E257746
Conformity to standard #2 CSA-C22.2 No. 61010-1
Conformity to standard #3 IEC 61557-12
Conformity to standard #4 ISO 14025
Proposition 65 California WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov

Standards

Conformity to standards
  • IEC
  • UL

Certificates and Declaration - Safety

UL file number E257746

General Product Characteristics

Device type Current sensors for DIRIS A, DIRIS B & DIRIS Digiware I

Technical Characteristics

Model iTR-21
Opening 0.83 in / 21 mm
Rated current [A] 63 ... 250 A
Secondary rated current RJ12
Function Current measurement
Type of current AC
Type of product Split core
Internal diameter 84x34
Secondary Output Voltage
Accuracy class 0.5
Type of connection RJ12
Conformity to standards
  • IEC 61557-12
  • UL 61010
Customisable No

Technical Characteristics - Electrical

Intermittent overload 10x In for 1s
Max voltage (Phase/neutral) 300
Rated withstand voltage 3kV

Technical Characteristics - Environmental

Maximum operating altitude 6560 feet / 2000 m
Measurement category CAT III
Operating temperature -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
Relative humidity 95% RH without condensation
Storage temperature -25 … +85 °C / -13 °F … +185 °F (IEC 60068-2-1/IEC 60068-2-2)

Technical Characteristics - Measurement

Accuracy class 0.5 for the global measurement chain (Associated with Digiware I, DIRIS B & DIRIS A)
Current rating range 63 ... 250 A
Current Sensor Secondary type 100mV
Current sensor type Split Core
Degree of Pollution IP20 / IK06
Frequency rating 50/60 Hz
Full measurement range 1.26 ... 300 A

ETIM - Electrical characteristics

Rated primary current [A] 250
Rated secondary current [A] 0.1
Rated secondary apparent power [VA] 0.1
Accuracy class 0.2S
Overcurrent limiting factor FS 10
Calibrated Yes

ETIM - Mechanical characteristics

With contact protection Yes
Height opening [mm] 21..21
Width opening [mm] 21..21
Opening diameter [mm] 21
Snap mounting Yes
With copper rail Yes
Secondary connection Plug-in connection

ETIM - Technical features

Model Attachable current transformer
Number of primary inputs 1

Logistics

GTIN/EAN 3596033020094
Customs number 8504312990
Price unit PC
Weight of the packing unit [kg] 0.104
Length of the packing unit [m] 0.05
Width of the packing unit [m] 0.13
Depth of the packing unit [m] 0.17

Product Details

Effective date 2018-01-01
Offer Life Cycle Code 40
Country of origin FR

Classification

UNSPSC 83101808
ETIM Class EC002048
IGCC 6042
