Strong Points
Function
The DIRIS MCM is a revenue grade networked Energy & Power sub-meter promoting a simplified approach to retrofit applications, while ensuring safety and code compliance. It has been designed using industrial best practices providing industry leading durability and ease of installation.
The DIRIS MCM supports 333mV output or Rogowski style current sensors. It has been designed with mechanical, electrical and software features that will appeal to those seeking a simplified approach to installation and setup of energy management applications.
Conformity to standards
UL 61010-1
CSA-C22.2 No 61010-1-12
ANSI C12.1-2015 Class 0.2
IEC 62053-22
IEC 62053-23
References
DIRIS MCM is available in X versions
Item | Model | Type | Communication protocols | Communication ports | Select |
---|---|---|---|---|---|
48270549 | with disconnect | 48 CT inputs | Modbus RTU/TCP | RS485 + ETHERNET (+Wireless Option) | |
48270548 | without disconnect | 48 CT inputs | Modbus RTU/TCP | RS485 + ETHERNET (+Wireless Option) | |

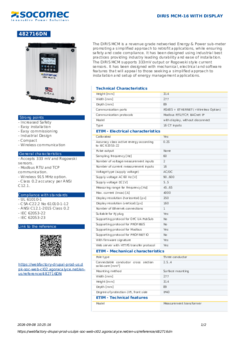

482716DN | |||||

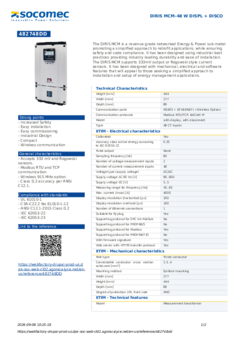

482748DD | |||||

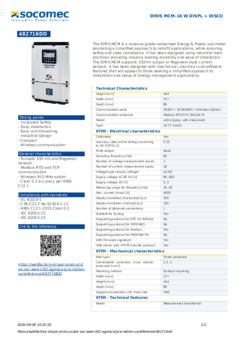

482716DD | |||||

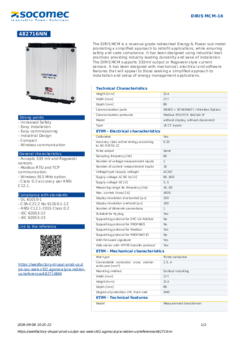

482716NN | |||||
482748DN | |||||
482748ND | |||||

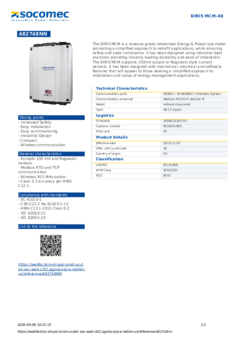

482748NN |
Advantages
Increased Safety
The DIRIS MCM is designed to improve installation safety and meets electrical code requirements:
- Built-in optional disconnect provides path to quickly and easily service the meter independently of other circuits.
- mV CT connections, can be connected and disconnected under load.
- No user-direct access to dangerous high voltages, keeping instrumentation engineers safe.
- Retained fasteners, ensuring screws stay securely in place and don‘t fall inside electrical panels.
Easy installation
- Wall or top cabinet mounting.
- Built-in 1” conduit holes - 3 at the bottom and 3 at the top of the meter.
- Push-in terminals for current sensors, no tools required!
- Clear visible numbering of CT inputs, with color coded terminals that match CT output lead wires.
Easy commissioning
- Configuration with a simple and intuitive PC application via a direct USB connection.
- ONE IP address and Modbus slave address supports the entire meter, simplifying network integration pain points.
- CT configuration correction algorithm helps eliminate user wiring and setup errors while reducing
downtime.
Industrial Design
- Aluminum bonded enclosure.
- Internal fuse protection of each hot leg.
- Fuses can be replaced safely for maintenance.
Compact
- The most compact high density multicircuit meter on the market, in an enclosed format.
- Ideal for retrofitting electrical distribution centers with limited wall space.
Wireless communication
When associated with the Socomec RF interfaces, DIRIS MCM power meters from different locations throughout a facility can communicate their measurements wirelessly to a central Hub, which significantly reduces installation and wiring time.
Applications
- Data center - Power availability for servers
- Building - Metering and sub-billing
Technical data
Mechanical characteristics | |
---|---|
Enclosure material |
- Extruded anodized aluminium body - Glass filled nylon end caps |
Mounting | Wall mounting (2 or 3 fastener locations) |
Ingress Protection | IP40 |
Conduit connections | Sized for 1-inch EMT conduit connection |
Electrical characteristics | ||||||||
---|---|---|---|---|---|---|---|---|
Voltage range |
2 voltage inputs - Main voltage input: 90-600 VAC L-N / L-L - CAT III - Secondary voltage input: 90-250 VAC L-N / L-L CAT III |
|||||||
Voltage connections |
- Main Voltage input: Board mounted terminal block, 5 positions, stranded or solid AWG 12…AWG 14 / 2.5 … 4 mm² - Secondary voltage input: Removable screw terminal block, 4 positions, stranded or solid AWG 12…AWG 18 / 0.75 … 4 mm² cable |
|||||||
Electrical Network (Service) type |
Single-Phase - Two-Wire, Line-to-Neutral Single-Phase - Two-Wire, Line-to-Line Single-Phase - Three-Wire (Split-Phase) Three-Phase - Three-Wire (Delta) Three-Phase - Four-Wire (Wye) |
|||||||
Frequency range | 45 ... 65 Hz | |||||||
Power supply |
- Line powered (any two lines 90 - 600 VAC) - 5VDC 500 mA from USB port (offline configuration mode) |
Measuring characteristics | |
---|---|
Voltage measurement | |
Sampling rate | 1.8 kHz |
Voltage measurement accuracy | Class 0.2 |
Current measurement | |
Number of current inputs |
MCM-16: 16 MCM-48: 48 |
Associated current sensors |
- 333 mV current sensors - Rogowski coil sensors (131 mV / kA @ 60 Hz) |
CT Connection | Board mounted push-in spring terminal block AWG 16 … AWG 24 / 0.5 … 1.5 mm² cable, 600 VAC, twisted pair |
Current measurement accuracy | Class 0.1 |
Power and Energy measurement | |
Active Power/Energy accuracy | Class 0.2 |
Communication characteristics | |
---|---|
RS485 | |
Connection type | Half-Duplex, 2-3 wires |
Protocol | Modbus RTU |
Baudrate | 9600 bds - 115200 bds |
Ethernet | |
Connection type | RJ45 10/100 Mbs |
Protocol | Modbus TCP/IP, BACnet IP, MQTT |
USB | |
Connection type | USB Type C |
Function | Firmware upgrade and configuration |
Environmental characteristics | |
---|---|
Operating temperature | -4 ... +140°F / -20 ... +60°C |
Storage temperature | -13 ... +158°F / -25 ... +70°C |
Operating humidity | 5% to 95% RH / +131°F / +55°C, non-condensing |
Operating altitude | < 6560 ft / 2000 m |
Configure your DIRIS MCM power meter using MCM-View
This tutorial video explains where to download the MCM-View software and walks you through the configuration steps to configure your DIRIS MCM power meter. Always be sure to connect the USB cable between your laptop and your DIRIS MCM BEFORE opening MCM-View.
Correct wiring errors on MCM-View thanks to the CT Correct Algorithm
Discover how the DIRIS MCM CT Correct algorithm helps prevent wiring errors and ensures reliable power measurements. The video will address common wiring mistakes and demonstrate how the algorithm automatically corrects them in the software.
