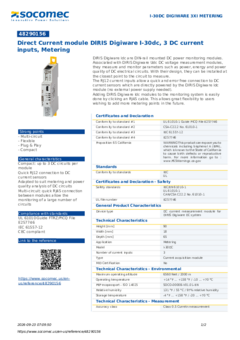

Strong Points
-
Multi-circuit
-
Flexible
-
Plug & Play
-
Compact
Function
DIRIS Digiware Idc are DIN-rail mounted DC power monitoring modules. Associated with DIRIS Digiware Udc DC voltage measurement modules, they measure and monitor parameters such as power, energy and power quality of DC electrical circuits. With their design, they can be installed at the closest point to the circuit to measure.
The RJ12 current inputs allow a quick and error free connection to DC current sensors which are directly powered by the DIRIS Digiware Idc module (no external power supply needed).
Adding DIRIS Digiware Idc modules to the monitoring system is easily done by clicking an RJ45 cable. This allows great flexibility to users wishing to add more metering points in the future.
Certificates and Declaration
| Conformity to standard #1 | UL 61010-1 Guide PICQ File E257746 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 61010-1 |
| Conformity to standard #3 | IEC 61557-12 |
| Conformity to standard #4 | E257746 |
| Proposition 65 California | WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| Safety standards | IEC/EN 61010-1 UL 61010-1 CAN/CSA C22.2 No. 61010-1 |
|---|---|
| UL file number | E257746 |
General Product Characteristics
| Device type | DC current measurement module for DIRIS Digiware DC system |
|---|
Technical Characteristics
| Application | Metering |
|---|---|
| Model | I-30DC |
| Number of current inputs | 3 |
| Type | Current acquisition module |
Technical Characteristics - Environmental
| Maximum operating altitude | 6560 feet / 2000 m |
|---|---|
| Operating temperature | +14 °F … +158 °F / -10 … +70 °C |
| PEP ecopassport - ISO 14025 | SOCO-00008-V01.01-EN |
| Relative humidity | 131 °F / 55 °C / 97% relative humidity |
| Storage temperature | -4 °F … +158 °F / -20 … +70 °C |
Technical Characteristics - Measurement
| Accuracy class | Class 0.5 Curretn measurement |
|---|---|
| Current measurement type | DC |
| General measurements | KWH, Demand ProfilesDC Current, DC Power |
ETIM - Electrical characteristics
| Sampling frequency [Hz] | 10000 |
|---|---|
| Number of current measurement inputs | 3 |
| Voltage type (supply voltage) | DC |
| Supply voltage DC [V] | 0..24 |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for OPC UA PubSub | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for other bus systems | No |
| With audit logging (audit log) | No |
| With firmware signature | Yes |
| With logging of security events (security event log) | Yes |
| With Role Based Access Control (RBAC) | No |
| Web server with HTTPS transfer protocol | No |
ETIM - Mechanical characteristics
| Width [mm] | 18 |
|---|---|
| Height [mm] | 90 |
| Depth [mm] | 65 |
| Degree of protection (IP), front side | IP20 |
ETIM - Technical features
| Ampere meter | Yes |
|---|---|
| Blind power meter | Yes |
| With rotational speed meter | No |
| Frequency meter | No |
| Pulse counter | No |
| Voltmeter | No |
| Effective power measurement device | Yes |
| Remote display | No |
Logistics
| GTIN/EAN | 3596033002885 |
|---|---|
| Customs number | 9030900000 |
| Price unit | PC |
| Weight of the packing unit | 0.09 |
| Length of the packing unit | 0.12 |
| Width of the packing unit | 0.085 |
| Depth of the packing unit | 0.033 |
Product Details
| Effective date | 2018-02-01 |
|---|---|
| Country of origin | FR |
| Discount Policy | 1EN60 |
| Discount Policy Label | MEASUREMENT SYSTEM PACKAGE |
Classification
| UNSPSC | 83101808 |
|---|---|
| ETIM Class | EC002301 |
| IGCC | 6042 |
