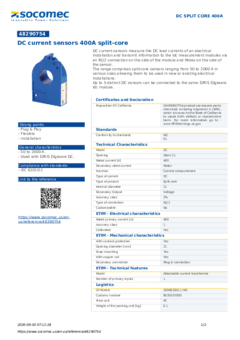

U3Ryb25nIFBvaW50cw==

  • UGx1ZyAmIFBsYXk=

  • RmxleGlibGU=

  • SW5zdGFsbGF0aW9u

RnVuY3Rpb24=

REMgY3VycmVudCBzZW5zb3JzIG1lYXN1cmUgdGhlIERDIGxvYWQgY3VycmVudHMgb2YgYW4gZWxlY3RyaWNhbCBpbnN0YWxsYXRpb24gYW5kIHRyYW5zbWl0IGluZm9ybWF0aW9uIHRvIHRoZSBsZGMgbWVhc3VyZW1lbnQgbW9kdWxlcyB2aWEgYW4gUkoxMiBjb25uZWN0aW9uIG9uIHRoZSBzaWRlIG9mIHRoZSBtb2R1bGUgYW5kIE1vbGV4IG9uIHRoZSBzaWRlIG9mIHRoZSBzZW5zb3IuPGJyIC8+DQpUaGUgcmFuZ2UgY29tcHJpc2VzIHNwbGl0LWNvcmUgc2Vuc29ycyByYW5naW5nIGZyb20gNTAgdG8gMjAwMCBBIGluIHZhcmlvdXMgc2l6ZXMgYWxsb3dpbmcgdGhlbSB0byBiZSB1c2VkIGluIG5ldyBvciBleGlzdGluZyBlbGVjdHJpY2FsIGluc3RhbGxhdGlvbnMuPGJyIC8+DQpVcCB0byAzIGRpc3RpbmN0IERDIHNlbnNvcnMgY2FuIGJlIGNvbm5lY3RlZCB0byB0aGUgc2FtZSBESVJJUyBEaWdpd2FyZSBJZGMgbW9kdWxlLg==

Certificates and Declaration

Proposition 65 California WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov

Standards

Conformity to standards
  • IEC
  • UL

Technical Characteristics

Model DC
Opening Diam.21
Rated current [A] 400
Secondary rated current Molex
Function Current measurement
Type of current DC
Type of product Split core
Internal diameter 21
Secondary Output Voltage
Accuracy class 2%
Type of connection RJ12
Customisable No

ETIM - Electrical characteristics

Rated primary current [A] 400
Accuracy class 1
Calibrated Yes

ETIM - Mechanical characteristics

With contact protection Yes
Opening diameter [mm] 21
Snap mounting Yes
With copper rail Yes
Secondary connection Plug-in connection

ETIM - Technical features

Model Attachable current transformer
Number of primary inputs 1

Logistics

GTIN/EAN 3596033011740
Customs number 9030337000
Price unit PC
Weight of the packing unit [kg] 0.1
Length of the packing unit [m] 0.095
Width of the packing unit [m] 0.05
Depth of the packing unit [m] 0.035

Product Details

Effective date 2018-02-01
Offer Life Cycle Code 40
Country of origin CN

Classification

UNSPSC 83101808
ETIM Class EC002048
IGCC 6042

Documentation

Visit resource center
  • PDF
    Catalogue - extract EN-US
    28.99 MB
    Selection Guide - UL_CSA Power Monitoring
    Download
    Select
  • PDF
    Catalog pages EN-US
    2.16 MB
    DIRIS Digiware Idc - Direct current measurement module
    Download
    Select
  • PDF
    Catalog pages EN-US
    1.54 MB
    DC current sensors Associated with DIRIS Digiware DC
    Download
    Select
  • PDF
    Selection guide EN-US
    6.62 MB
    Selection Guide - UL_CSA Power Monitoring
    Download
    Select
  • PDF
    Quick start guide EN-US
    178.84 KB
    California Proposition 65 Warning Metering, Monitoring, Power Quality
    Download
    Select

References

DC split‑core sensors is also available in 8 versions

Item Model Opening Rated current [A] Secondary rated current Select
48290750 DC Diam.21 50 Molex
48290751 DC Diam.21 100 Molex
48290752 DC Diam.21 200 Molex
48290753 DC Diam.21 300 Molex
48290755 DC Diam.21 500 Molex
48290756 DC 40x104 800 Molex
48290758 DC 40x104 1500 Molex
48290759 DC 40x104 2000 Molex
