Function
The DIRIS Digiware U module is designed to accuratley measure voltage for the entire DIRIS Digiware system.
The Digiware RJ45 Bus facilitates the transmission of voltage measurements, power supply, and communication to all connected Digiware modules.
References

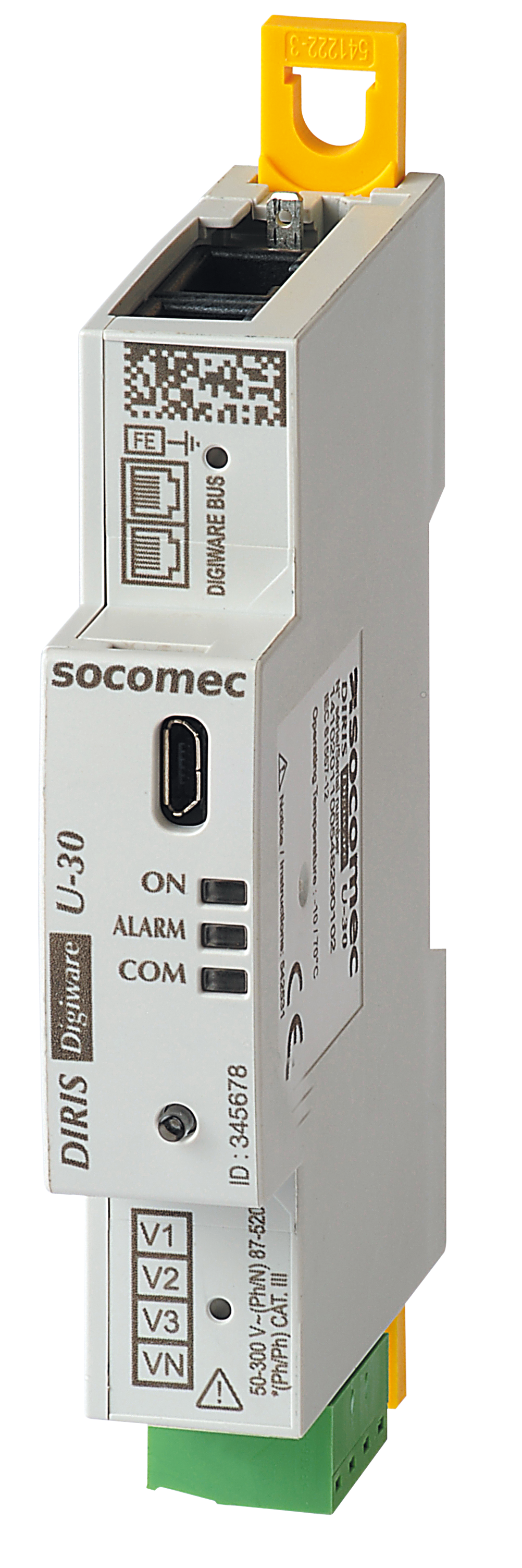

DIRIS Digiware U is available in 3 versions
| Item | Model | Application | Type | Rated voltage | Select |
|---|---|---|---|---|---|
| 48290105 | U-10 | Metering | AC voltage acquisition module | 87..520 VAC (L-L) | |
| 48290102 | U-30 | Analysis | AC voltage acquisition module | 87..520 VAC (L-L) | |
| 48290108 | U-100 | Analysis | AC voltage acquisition module | 90..690 VAC(L-L) rated voltage |
Advantages
Safe
No hazardous voltage on panel doors, as the DIRIS Digiware U module is DIN rail mounted inside the electrical panel.
Compact
- 1 single voltage measurement point for the entire system.
- Single point of protection for voltage measuring.
Comprehensive
A complete solution for metering, monitoring and power quality analysis of the supplied voltage.
Flexible
Compatible with all electrical service types up to 690 V L-L without potential transformers:
⋅Single phase
⋅Two-phase (with or without neutral)
⋅Three-phase (with or without neutral)
Accurate
⋅0.1% coltage accuracy with the U-100
⋅ANSI C12.1 Accuracy testing done by independent laboratory, guaranteeing accurate and reliable measurements.
Compact for multi-circuit applications
⋅A single voltage reference point for the entire DIRIS Digiware system
⋅Eliminates the need for redundant protective devices, a single protection is needed for the entire system.
