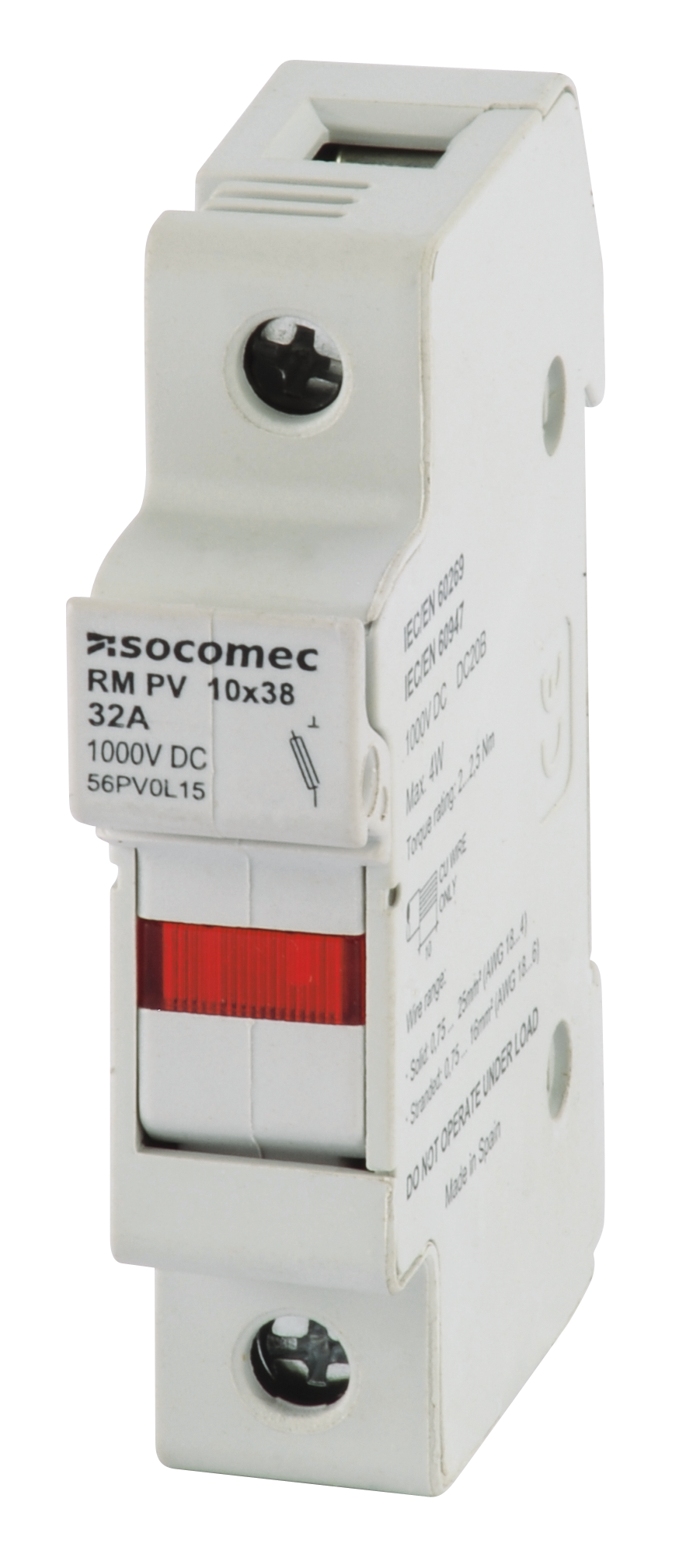

RM PV UL are modular fuse holders for cylindrical gPV fuses. They provide safe disconnection and protection against overcurrents in photovoltaic applications up to 30 A, 1000 VDC.
RM PV are available with or without blown fuse LED indication.

Conformity to standards

UL 4248-18, Guide EZMR, file E470731
CSA C22.2, class 3211-37, file 265615
IEC 60269-2


RM PV is available in X versions

Item Rated current [A] Number of poles Fuse size Size Fuse melting indicator Select

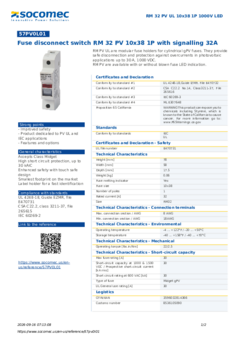

57PV0L01 32 1 10x38 RM32 Yes

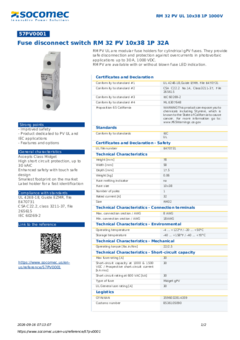

57PV0001 32 1 10x38 RM32 no


Improved safety

- Rated voltage 1000 VDC.
- Self-extinguishing thermoplastic material.
- IP2X fuse.

Product dedicated to PV UL and IEC applications

Protection against reverse currents by using gPV fuses designed for photovoltaic applications.

Features and options

- Modular 45-mm cut-out.
- Locks with optional accessory.
