Strong Points
Function
SIRCOVER are heavy-duty manual transfer switches. They ensure switching transfer of sources or transfer of two low voltage circuits on load as well as their safe disconnection.
These extremely durable switches are tested and approved for use in the most demanding applications, such as resistive load or total system applications.
Conformity to standards
UL 1008, Guide WPYV File E317092
UL 98, Guide WHTY File E201138
CSA 22.2#4, Class 4651-02, File 112964
References
SIRCOVER UL is available in 18 versions
| Item | Conformity to standard #1 | Rated current [A] | Number of poles | Control operator | Select |
|---|---|---|---|---|---|
| 41503026 | UL 1008 | 260 | 3 | MTSE | |
| 41504026 | UL 1008 | 260 | 4 | MTSE | |
| 41502012 | UL 1008 | 100 | 2 | MTSE | |
| 41503012 | UL1008 | 100 | 3 | MTSE | |
| 41504012 | UL1008 | 100 | 4 | MTSE | |
| 41502022 | UL 1008 | 200 | 2 | MTSE | |
| 41503022 | UL1008 | 200 | 3 | MTSE | |

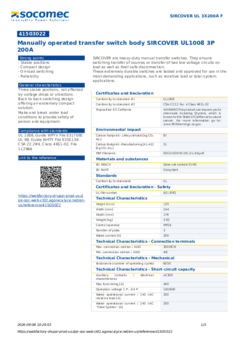

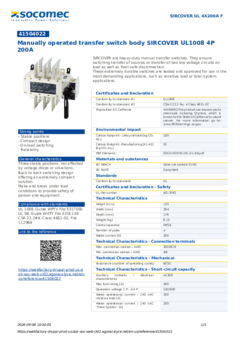

| 41504022 | UL1008 | 200 | 4 | MTSE | |
| 41502026 | UL 1008 | 260 | 2 | MTSE | |
| 41502042 | UL 1008 | 400 | 2 | MTSE | |
| 41503042 | UL1008 | 400 | 3 | MTSE | |
| 41504042 | UL1008 | 400 | 4 | MTSE | |
| 41503060 | UL1008 & UL98 | 600 | 3 | MTSE | |
| 41504060 | UL1008 & UL98 | 600 | 4 | MTSE | |

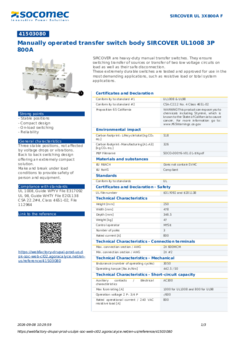

| 41503080 | UL1008 & UL98 | 800 | 3 | MTSE | |
| 41504080 | UL1008 & UL98 | 800 | 4 | MTSE | |

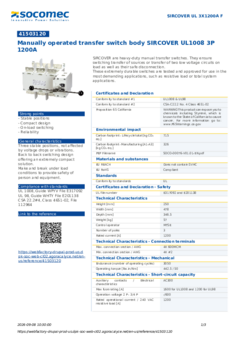

| 41503120 | UL1008 & UL98 | 1200 | 3 | MTSE | |
| 41504120 | UL1008 & UL98 | 1200 | 4 | MTSE |
Advantages
Stable positions
SIRCOVER UL has three stable positions which are not affected by voltage drops or vibrations, thus protecting your load against network interference.
Compact design
The SIRCOVER UL is based on back-to-back switching technology, providing a compact solution.
On-load switching
The SIRCOVER UL enables secure and reliable switching without the need for pre-breaking upstream.
Reliability
The SIRCOVER UL has double breaking per pole achieved through its sliding bar contact system.
The quick opening and rapid closure provides simultaneous disconnecting or making of all power contacts.
Environmental data
Tested beyond market standards to maximise product lifetime - even in severe operating environments.
RoHS compliant
PEP ecopassport® available
