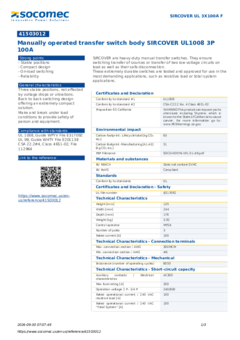

U3Ryb25nIFBvaW50cw==

  • U3RhYmxlIHBvc2l0aW9ucw==

  • Q29tcGFjdCBkZXNpZ24=

  • T24tbG9hZCBzd2l0Y2hpbmc=

  • UmVsaWFiaWxpdHk=

RnVuY3Rpb24=

U0lSQ09WRVIgYXJlIGhlYXZ5LWR1dHkgbWFudWFsIHRyYW5zZmVyIHN3aXRjaGVzLiBUaGV5IGVuc3VyZSBzd2l0Y2hpbmcgdHJhbnNmZXIgb2Ygc291cmNlcyBvciB0cmFuc2ZlciBvZiB0d28gbG93IHZvbHRhZ2UgY2lyY3VpdHMgb24gbG9hZCBhcyB3ZWxsIGFzIHRoZWlyIHNhZmUgZGlzY29ubmVjdGlvbi48YnIgLz4NClRoZXNlIGV4dHJlbWVseSBkdXJhYmxlwqBzd2l0Y2hlcyBhcmUgdGVzdGVkIGFuZCBhcHByb3ZlZCBmb3IgdXNlIGluIHRoZSBtb3N0IGRlbWFuZGluZyBhcHBsaWNhdGlvbnMsIHN1Y2ggYXMgcmVzaXN0aXZlIGxvYWQgb3IgdG90YWwgc3lzdGVtIGFwcGxpY2F0aW9ucy4=

Certificates and Declaration

Conformity to standard #1 UL1008
Conformity to standard #2 CSA-C22.2 No. 4 Class 4651-02
Proposition 65 California WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov

Environmental Sustainability

Climate change - Total - Cradle to Grave [kg CO₂ eq.] 63
Climate change - Total - Cradle to Gate [kg CO₂ eq.] 51
SVHC > 0.1 mass percentage? No
RoHS applicable? Yes

Standards

Conformity to standards UL

Certificates and Declaration - Safety

UL file number E317092

Technical Characteristics

Height [mm] 135
Width [mm] 244
Depth [mm] 176
Weight [kg] 5.92
Control operator MTSE
Number of poles 3
Rated current [A] 100

Technical Characteristics - Connection terminals

Max. connection section / AWG 300MCM
Min. connection section / AWG #6

Technical Characteristics - Mechanical

Endurance (number of operating cycles) 6050

Technical Characteristics - Short-circuit capacity

Auxiliary contacts / Electrical characteristics AC300
Max fuse rating [A] 200
Operation voltage 2 P - 3/4 P 240/600
Rated operational current / 240 VAC resistive load [A] 100
Rated operational current / 240 VAC “Total System” [A] 100
Rated operational current / 480 VAC resistive load [A] 100
Rated operational current / 480 VAC “Total System” [A] 100
Rated operational current / 600 VAC resistive load [A] 100
Rated operational current / 600 VAC “Total System” [A] 100
Short circuit rating at 600 VAC with “Any Breaker” (kA) / Short circuit capacity [ms] 25
Short circuit rating at 600 VAC with “Any Breaker” (kA) / Short circuit rating [kA] 10
Short circuit rating at 600 VAC [kA] 100
Type of fuse J

ETIM - Electrical characteristics

Max. rated operation voltage Ue AC [V] 600
Rated operating voltage [V] 240..600
Rated permanent current Iu [A] 100
Number of poles 3

ETIM - Mechanical characteristics

Suitable for floor mounting No
Suitable for front mounting 4-hole No
Suitable for front mounting centre No
Suitable for distribution board installation No
Suitable for intermediate mounting Yes
Colour control element Black
Degree of protection (IP), front side IP20
Width [mm] 244
Height [mm] 135
Depth [mm] 176

ETIM - Technical features

Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation No
Version as reversing switch Yes
Number of switches 2
Motor drive optional No
Motor drive integrated No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Type of control element Door coupling rotary drive
Interlockable Yes
Type of electrical connection of main circuit Bolt connection

Logistics

GTIN/EAN 3596032759452
Customs number 8536508000
Price unit PC
Weight of the packing unit [kg] 5.92
Length of the packing unit [m] 0.38
Width of the packing unit [m] 0.38
Depth of the packing unit [m] 0.255

Product Details

Effective date 2013-07-09
Offer Life Cycle Code 40
Country of origin FR

Classification

UNSPSC 39122205
ETIM Class EC000216
IGCC 5177

Documentation

Visit resource center
  • PDF
    Quick start guide EN-US
    178.21 KB
    California Proposition 65 Warning SIRCOVER
    Download
    Select
  • PDF
    Catalog pages EN-US
    2.66 MB
    SIRCOVER UL 98_1008 - Manually operated transfer switching equipment
    Download
    Select
  • Mechanical view EN-US
    SIRCOVER UL 3X100A F CAD 41503012
    Ask
  • PDF
    Quick start guide EN
    4.11 MB
    SIRCOVER UL 1008 100-200A - Manual transfer switch
    Download
    Select

References

SIRCOVER UL is also available in 17 versions

Item Conformity to standard #1 Rated current [A] Number of poles Control operator Select
41503026 UL 1008 260 3 MTSE
41504026 UL 1008 260 4 MTSE
41502012 UL 1008 100 2 MTSE
41504012 UL1008 100 4 MTSE
41502022 UL 1008 200 2 MTSE
41503022 UL1008 200 3 MTSE
41504022 UL1008 200 4 MTSE
41502026 UL 1008 260 2 MTSE
41502042 UL 1008 400 2 MTSE
41503042 UL1008 400 3 MTSE
41504042 UL1008 400 4 MTSE
41503060 UL1008 & UL98 600 3 MTSE
41504060 UL1008 & UL98 600 4 MTSE
41503080 UL1008 & UL98 800 3 MTSE
41504080 UL1008 & UL98 800 4 MTSE
41503120 UL1008 & UL98 1200 3 MTSE
41504120 UL1008 & UL98 1200 4 MTSE
