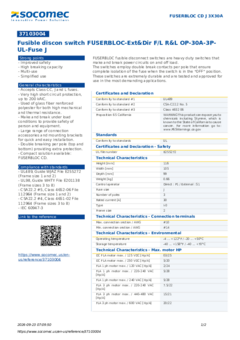

Certificates and Declaration
| Conformity to standard #1 | UL489 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 5 |
| Conformity to standard #3 | Class 4652 06 |
| Proposition 65 California | WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov |
Standards
| Conformity to standards | UL |
|---|
Certificates and Declaration - Safety
| UL file number | E255272 |
|---|
Technical Characteristics
| Length of the product unit [mm] | 116 |
|---|---|
| Width of the product unit [mm] | 105 |
| Depth of the product unit [mm] | 99 |
| Weight [kg] | 0.66 |
| Control operator | Direct : P1 / External : S1 |
| Fuse size | J |
| Number of poles | 3 |
| Rated current [A] | 30 |
| Type | I-0 |
| Frame size | 2 |
Technical Characteristics - Connection terminals
| Max. connection section / AWG | #10 |
|---|---|
| Min. connection section / AWG | #14 |
Technical Characteristics - Environmental
| Operating temperature | -4 ... +122°F / -20 ... +50°C |
|---|---|
| Storage temperature | -40 ... +158°F / -40 ... +70°C |
Technical Characteristics - Max. motor HP
| DC FLA motor max. / 125 VDC [Hp/A] | 03/25 |
|---|---|
| DC FLA motor max. / 250 VDC [Hp/A] | 5/20 |
| FLA 1 ph motor max. / 120 VAC [Hp/A] | 2/24 |
| FLA 1 ph motor max. / 220-240 VAC [Hp/A] | 5/28 |
| FLA 1 ph motor max. / 240 VAC [Hp/A] | 5/28 |
| FLA 3 ph motor max. / 220-240 VAC [Hp/A] | 7.5/22 |
| FLA 3 ph motor max. / 440-480 VAC [Hp/A] | 15/21 |
| FLA 3 ph motor max. / 600 VAC [Hp/A] | 20/22 |
Technical Characteristics - Mechanical
| Endurance (number of operating cycles) | 10000 |
|---|---|
| Operating torque [lbs.in/Nm] | 31/3.5 |
Technical Characteristics - Short-circuit capacity
| Auxiliary contacts / Electrical characteristics | A600 |
|---|---|
| Max fuse rating [A] | 30 |
| Operation voltage 2 P - 3/4 P | 600VAC |
| Short circuit rating at 600 VAC [kA] | 100 |
| Type of fuse | J |
| UL General use rating [A] | 30 |
ETIM - Electrical characteristics
| Max. rated operation voltage Ue AC [V] | 600 |
|---|---|
| Rated permanent current Iu [A] | 30 |
| Conditioned rated short-circuit current Iq [kA] | 100 |
| Number of poles | 3 |
ETIM - Mechanical characteristics
| Cable entry | Top/bottom |
|---|---|
| Equipped with connectors | No |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | Yes |
| Suitable for busbar mounting | No |
| Degree of protection (IP), front side | IP20 |
ETIM - Technical features
| Version as main switch | Yes |
|---|---|
| Version as safety switch | Yes |
| Suitable for fuses | Other |
| With error protection | No |
| Type of electrical connection of main circuit | Frame clamp |
| Type of control element | Short thumb-grip |
| Position control element | Front side |
| Motor drive optional | No |
| Motor drive integrated | No |
| Version as emergency stop installation | Yes |
Logistics
| GTIN/EAN | 3596031190027 |
|---|---|
| Customs number | 8536303000 |
| Price unit | PC |
| Weight of the packing unit [kg] | 0.67 |
| Length of the packing unit [m] | 0.14 |
| Width of the packing unit [m] | 0.135 |
| Depth of the packing unit [m] | 0.155 |
Product Details
| Effective date | 1998-06-11 |
|---|---|
| Offer Life Cycle Code | 40 |
| Country of origin | FR |
Classification
| UNSPSC | 39122233 |
|---|---|
| ETIM Class | EC001040 |
| IGCC | 5291 |
