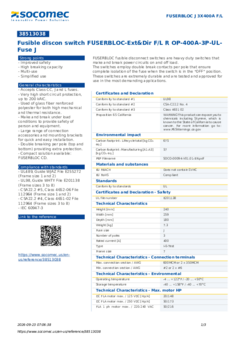

Certificates and Declaration
| Conformity to standard #1 | UL98 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 4 |
| Conformity to standard #3 | Class 4651 02 |
| Proposition 65 California | WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov |
Environmental Sustainability
| PEP Filename | SOCO-00094-V01.01-EN.pdf |
|---|---|
| Climate change - Total - Cradle to Grave [kg CO₂ eq.] | 675 |
| Climate change - Total - Cradle to Gate [kg CO₂ eq.] | 57 |
Standards
| Conformity to standards | UL |
|---|
Certificates and Declaration - Safety
| UL file number | E201138 |
|---|
Technical Characteristics
| Length of the product unit [mm] | 240 |
|---|---|
| Width of the product unit [mm] | 259 |
| Depth of the product unit [mm] | 180 |
| Weight [kg] | 7.3 |
| Fuse size | J |
| Number of poles | 3 |
| Rated current [A] | 400 |
| Type | I-0-Test |
| Frame size | 7 |
Technical Characteristics - Connection terminals
| Max. connection section / AWG | 600MCM or 2 x 350MCM |
|---|---|
| Min. connection section / AWG | #2 or 2 x #6 |
Technical Characteristics - Environmental
| Operating temperature | -4 ... +122°F / -20 ... +50°C |
|---|---|
| Storage temperature | -40 ... +158°F / -40 ... +70°C |
Technical Characteristics - Max. motor HP
| DC FLA motor max. / 125 VDC [Hp/A] | 20/148 |
|---|---|
| DC FLA motor max. / 250 VDC [Hp/A] | 50/173 |
| FLA 1 ph motor max. / 220-240 VAC [Hp/A] | 50/216 |
| FLA 1 ph motor max. / 240 VAC [Hp/A] | 50/216 |
| FLA 3 ph motor max. / 220-240 VAC [Hp/A] | 125/312 |
| FLA 3 ph motor max. / 440-480 VAC [Hp/A] | 250/302 |
| FLA 3 ph motor max. / 600 VAC [Hp/A] | 350/336 |
Technical Characteristics - Mechanical
| Endurance (number of operating cycles) | 6000 |
|---|---|
| Operating torque [lbs.in/Nm] | 150/17 |
Technical Characteristics - Short-circuit capacity
| Auxiliary contacts / Electrical characteristics | A600 |
|---|---|
| Max fuse rating [A] | 400 |
| Operation voltage 2 P - 3/4 P | 600VAC |
| Short circuit rating at 600 VAC [kA] | 200 |
| Type of fuse | J |
| UL General use rating [A] | 400 |
ETIM - Electrical characteristics
| Max. rated operation voltage Ue AC [V] | 600 |
|---|---|
| Rated permanent current Iu [A] | 400 |
| Conditioned rated short-circuit current Iq [kA] | 200 |
| Number of poles | 3 |
ETIM - Mechanical characteristics
| Cable entry | Top/bottom |
|---|---|
| Equipped with connectors | No |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | Yes |
| Suitable for busbar mounting | No |
| Degree of protection (IP), front side | IP20 |
ETIM - Technical features
| Version as main switch | Yes |
|---|---|
| Version as safety switch | Yes |
| Suitable for fuses | Other |
| With error protection | No |
| Type of electrical connection of main circuit | Bolt connection |
| Type of control element | Long turning handle |
| Position control element | Front side |
| Motor drive optional | No |
| Motor drive integrated | No |
| Version as emergency stop installation | Yes |
Logistics
| GTIN/EAN | 3596031937707 |
|---|---|
| Customs number | 8536309000 |
| Price unit | PC |
| Weight of the packing unit [kg] | 7.3 |
| Length of the packing unit [m] | 0.475 |
| Width of the packing unit [m] | 0.4 |
| Depth of the packing unit [m] | 0.305 |
Product Details
| Effective date | 2008-10-01 |
|---|---|
| Offer Life Cycle Code | 40 |
| Country of origin | FR |
Classification
| UNSPSC | 39122233 |
|---|---|
| ETIM Class | EC001040 |
| IGCC | 5291 |
