U3Ryb25nIFBvaW50cw==
-
RWFzeSB0byB1c2U=
-
RGV0ZWN0cyB3aXJpbmcgZXJyb3Jz
-
Q3VzdG9taXNhYmxl
-
Q29tcGxpYW50IHdpdGggSUVDIDYxNTU3LTEy
RnVuY3Rpb24=

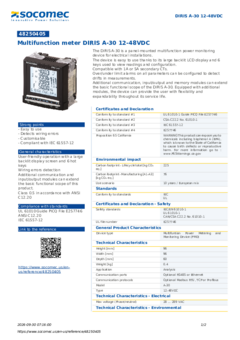

Certificates and Declaration
| Conformity to standard #1 | UL 61010-1 Guide PICQ File E257746 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 61010-1 |
| Conformity to standard #3 | IEC 61557-12 |
| Conformity to standard #4 | E257746 |
| Proposition 65 California | WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov |
Environmental impact
| Carbon footprint - Lifecycle total [kg CO₂ eq.] | 225 |
|---|---|
| Carbon footprint - Manufacturing [A1-A3] [kg CO₂ eq.] | 76 |
| Use scenario | 10 years / European mix |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| Safety standards |
IEC/EN 61010-1 UL 61010-1 CAN/CSA C22.2 No. 61010-1 |
|---|---|
| UL file number | E257746 |
General Product Characteristics
| Device type | Multifuntion Power Metering and Monitoring Device (PMD) |
|---|
Technical Characteristics
| Height [mm] | 96 |
|---|---|
| Width [mm] | 96 |
| Depth [mm] | 60 |
| Weight [kg] | 0.4 |
| Application | Analysis |
| Communication ports | Optional RS485 or Ethernet |
| Communication protocols | Optional Modbus RTU, TCP or Profibus |
| Model | A-30 |
| Type | 12-48VDC |
Technical Characteristics - Electrical
| Max voltage (Phase/neutral) | 28 … 289 VAC |
|---|
Technical Characteristics - Environmental
| Operating temperature | +14 … +131 °F / - 10 … + 55 °C |
|---|---|
| Relative humidity | 0.95 |
| Storage temperature | -4 … +185 °F / - 20 … + 85 °C |
Technical Characteristics - Measurement
| Current measurement type | AC |
|---|---|
| Frequency rating | 50/60 Hz |
| General measurements |
Metering: +/- kWh, +/- kvarh, kVAh Power demand Multi-measurement: V1, V2, V3, U12, U23, U31, f I1, I2, I3, In, ∑P, ∑Q, ∑S, ∑PF P, Q, S, PF per phase Predictive Power (∑P, ∑Q, ∑S) Voltage Ph/N unbalance Voltage Ph/Ph unbalance Current unbalance Internal temperature and external temperature via 3 PT100" |
| Number of Digital inputs/outputs | Via optional plug-in module |
| Power Quality measurements |
THD V1, V2, V3, U12, U23, U31, I1, I2, I3 Individual harmonics U, V, I (up to 63rd) |
| Voltage measurement type | AC |
Technical Characteristics - Power supply
| Power supply / Supply voltage VAC 50/60 Hz | 12 ... 48 VDC |
|---|
ETIM - Technical features
| Ampere meter | Yes |
|---|---|
| Blind power meter | Yes |
| With rotational speed meter | No |
| Frequency meter | Yes |
| Pulse counter | Yes |
| Voltmeter | Yes |
| Effective power measurement device | Yes |
Logistics
| GTIN/EAN | 3596033014864 |
|---|---|
| Customs number | 9030310090 |
| Price unit | PC |
| Weight of the packing unit [kg] | 0.48 |
| Length of the packing unit [m] | 0.12 |
| Width of the packing unit [m] | 0.11 |
| Depth of the packing unit [m] | 0.11 |
Product Details
| Effective date | 2017-12-01 |
|---|---|
| Offer Life Cycle Code | 40 |
| Country of origin | TN |
Classification
| UNSPSC | 83101808 |
|---|---|
| ETIM Class | EC002301 |
| IGCC | 6042 |
Documentation
References
DIRIS A-30 is also available in 1 version
| Item | Model | Application | Type | Communication protocols | Communication ports | Select |
|---|---|---|---|---|---|---|
| 48250403 | A-30 | Analysis | 110-400 VAC / 120-350 VDC | Optional Modbus RTU, TCP or Profibus | Optional RS485 or Ethernet |
