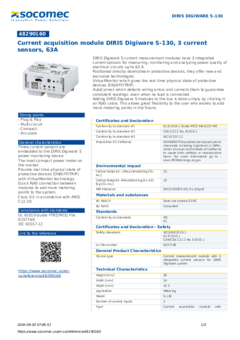

Strong Points
-
Plug & Play
-
Multi-circuit
-
Compact
-
Accurate
Function
DIRIS Digiware S current measurement modules have 3 integrated current sensors for measuring, monitoring and analyzing power quality of electrical circuits up to 63 A.
Positioned directly downstream protective devices, they offer new and exclusive technologies:
VirtualMonitor which gives the real time physical state of protective devices (ON/OFF/TRIP).
AutoCorrect which detects wiring errors and corrects them to guarantee consistent readings, even when no load is connected.
Adding DIRIS Digiware S modules to the bus is done simply by clicking in an RJ45 cable. This allows great flexibility to the user who wishes to add more metering points in the future.
Certificates and Declaration
| Conformity to standard #1 | UL 61010-1 Guide PICQ File E257746 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 61010-1 |
| Conformity to standard #3 | IEC 61557-12 |
| Proposition 65 California | WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| Safety standards | IEC/EN 61010-1 UL 61010-1 CAN/CSA C22.2 No. 61010-1 |
|---|---|
| UL file number | E257746 |
General Product Characteristics
| Device type | Current measurement module with 3 integrated current sensors for DIRIS Digiware system |
|---|
Technical Characteristics
| Application | Metering |
|---|---|
| Model | S-130 |
| Number of current inputs | 3 |
| Type | Current acquisition module with integrated current sensors |
Technical Characteristics - Environmental
| Operating temperature | 14 … +131 °F / -10 … +55 °C |
|---|---|
| PEP ecopassport - ISO 14025 | SOCO-00006-v01.01-fr, SOCO-00006-v01.01-en |
| Relative humidity | 104 °F / 40 °C / 95% RH |
| Storage temperature | -13 … + 158 °F / -25 … +70 °C |
Technical Characteristics - Measurement
| Accuracy class | Class 0.5 |
|---|---|
| Current measurement type | AC |
| Current rating range | 10-63 A |
| Current sensor type | Solid core |
| General measurements | Metering: +/- kWh, +/- kvarh, kVAh Multi-measurement: I1, I2, I3, In, ∑P, ∑Q, ∑S, ∑PF |
ETIM - Electrical characteristics
| Sampling frequency [Hz] | 10000 |
|---|---|
| Number of current measurement inputs | 3 |
| Voltage type (supply voltage) | DC |
| Supply voltage DC [V] | 0..24 |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for OPC UA PubSub | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for other bus systems | No |
| With audit logging (audit log) | No |
| With firmware signature | Yes |
| With logging of security events (security event log) | Yes |
| With Role Based Access Control (RBAC) | No |
| Web server with HTTPS transfer protocol | No |
ETIM - Mechanical characteristics
| Width [mm] | 54 |
|---|---|
| Height [mm] | 28 |
| Depth [mm] | 42.5 |
| Degree of protection (IP), front side | IP20 |
ETIM - Technical features
| Ampere meter | Yes |
|---|---|
| Blind power meter | Yes |
| With rotational speed meter | No |
| Frequency meter | No |
| Pulse counter | No |
| Voltmeter | No |
| Effective power measurement device | Yes |
| Remote display | No |
Logistics
| GTIN/EAN | 3596033020056 |
|---|---|
| Customs number | 9030337000 |
| Price unit | PC |
| Weight of the packing unit | 0.09 |
| Length of the packing unit | 0.12 |
| Width of the packing unit | 0.08 |
| Depth of the packing unit | 0.035 |
Product Details
| Effective date | 2018-02-01 |
|---|---|
| Country of origin | FR |
| Discount Policy | 1EN20 |
| Discount Policy Label | ELECTRONIC SENSORS |
Classification
| UNSPSC | 83101808 |
|---|---|
| ETIM Class | EC002301 |
| IGCC | 6042 |
