Strong Points

  • View more Created with sketchtool.

    Plug & Play

  • View more Created with sketchtool.

    Multi-circuit

  • View more Created with sketchtool.

    Compact

  • View more Created with sketchtool.

    Accurate

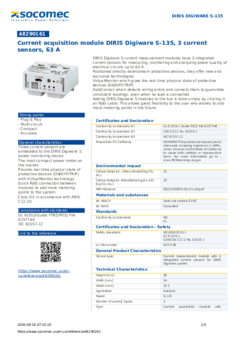

Function

DIRIS Digiware S current measurement modules have 3 integrated current sensors for measuring, monitoring and analyzing power quality of electrical circuits up to 63 A.
Positioned directly downstream protective devices, they offer new and exclusive technologies:
VirtualMonitor which gives the real time physical state of protective devices (ON/OFF/TRIP).
AutoCorrect which detects wiring errors and corrects them to guarantee consistent readings, even when no load is connected.
Adding DIRIS Digiware S modules to the bus is done simply by clicking in an RJ45 cable. This allows great flexibility to the user who wishes to add more metering points in the future.

=-=-=-=-=-=- System =-=-=-=-=-=-
Fill rate E-Order Common 29
Fill rate E-Order Selection 60
Certificates and Declaration
Conformity to standard #1 UL 61010-1 Guide PICQ File E257746
Conformity to standard #2 CSA-C22.2 No. 61010-1
Conformity to standard #3 IEC 61557-12
Proposition 65 California WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Standards
Conformity to standards
  • IEC
  • UL
Certificates and Declaration - Safety
Safety standards IEC/EN 61010-1 UL 61010-1 CAN/CSA C22.2 No. 61010-1
UL file number E257746
General Product Characteristics
Device type Current measurement module with 3 integrated current sensors for DIRIS Digiware system
Technical Characteristics
Application Analysis
Model S-135
Number of current inputs 3
Type Current acquisition module with integrated current sensors
Technical Characteristics - Environmental
Operating temperature 14 … +131 °F / -10 … +55 °C
PEP ecopassport - ISO 14025 SOCO-00006-v01.01-fr, SOCO-00006-v01.01-en
Relative humidity 104 °F / 40 °C / 95% RH
Storage temperature -13 … + 158 °F / -25 … +70 °C
Technical Characteristics - Measurement
Accuracy class Class 0.5
Current measurement type AC
Current rating range 10-63 A
Current sensor type Solid core
General measurements Metering: +/- kWh, +/- kvarh, kVAh Multi-tariff (8 max) Load curves Multi-measurement: I1, I2, I3, In, ∑P, ∑Q, ∑S, ∑PF P, Q, S, PF per phase Predictive Power Current unbalance (Inba, Idir, Iinv, Ihom, Inb) Phi, cos Phi, tan Phi"
Power Quality measurements THD I1, I2, I3, In Individual harmonics I up to 63rd Inrush
ETIM - Electrical characteristics
Sampling frequency [Hz] 10000
Number of current measurement inputs 3
Voltage type (supply voltage) DC
Supply voltage DC [V] 0..24
Supporting protocol for IEC 61850 Ethernet No
Supporting protocol for OPC UA PubSub No
Supporting protocol for PROFIBUS No
Supporting protocol for Modbus Yes
Supporting protocol for PROFINET IO No
Supporting protocol for other bus systems No
With audit logging (audit log) No
With firmware signature Yes
With logging of security events (security event log) Yes
With Role Based Access Control (RBAC) No
Web server with HTTPS transfer protocol No
ETIM - Mechanical characteristics
Width [mm] 54
Height [mm] 28
Depth [mm] 42.5
Degree of protection (IP), front side IP20
ETIM - Technical features
Ampere meter Yes
Blind power meter Yes
With rotational speed meter No
Frequency meter No
Pulse counter No
Voltmeter No
Effective power measurement device Yes
Remote display No
Logistics
GTIN/EAN 3596033016271
Customs number 9030337000
Price unit PC
Weight of the packing unit 0.09
Length of the packing unit 0.12
Width of the packing unit 0.08
Depth of the packing unit 0.035
Product Details
Effective date 2018-02-01
Country of origin FR
Discount Policy 1EN20
Discount Policy Label ELECTRONIC SENSORS
Classification
UNSPSC 83101808
ETIM Class EC002301
IGCC 6042
