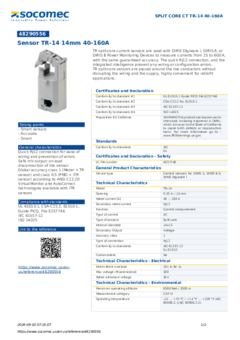

RnVuY3Rpb24=

VFIgc3BsaXQtY29yZSBjdXJyZW50IHNlbnNvcnMgYXJlIHVzZWQgd2l0aCBESVJJUyBEaWdpd2FyZSBJLCBESVJJUyBBLCBvciBESVJJUyBCIFBvd2VyIE1vbml0b3JpbmcgRGV2aWNlcyB0byBtZWFzdXJlIGN1cnJlbnRzIGZyb20gMjUgdG8gNjAwIEEsIHdpdGggdGhlIHNhbWUgZ3VhcmFudGVlZCBhY2N1cmFjeS4gVGhlIHF1aWNrIFJKMTIgY29ubmVjdGlvbiwgYW5kIHRoZSBpbnRlZ3JhdGVkIGludGVsbGlnZW5jZSBwcmV2ZW50IGFueSB3aXJpbmcgb3IgY29uZmlndXJhdGlvbiBlcnJvcnMuPGJyIC8+DQogVFIgc3BsaXQtY29yZSBzZW5zb3JzIGFyZSBwbGFjZWQgYXJvdW5kIHRoZSBsaXZlIGNvbmR1Y3RvcnMgd2l0aG91dCBkaXNydXB0aW5nIHRoZSB3aXJpbmcgYW5kIHRoZSBzdXBwbHksIGhpZ2hseSBjb252ZW5pZW50IGZvciByZXRyb2ZpdCBhcHBsaWNhdGlvbnMu

Certificates and Declaration
Conformity to standard #1 UL 61010-1 Guide PICQ File E257746
Conformity to standard #2 CSA-C22.2 No. 61010-1
Conformity to standard #3 IEC 61557-12
Conformity to standard #4 ISO 14025
Proposition 65 California WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Standards
Conformity to standards
  • IEC
  • UL
Certificates and Declaration - Safety
UL file number E257746
General Product Characteristics
Device type Current sensors for DIRIS A, DIRIS B & DIRIS Digiware I
Technical Characteristics
Model TR-14
Opening 0.55 in / 14 mm
Rated current [A] 40 ... 160 A
Secondary rated current RJ12
Function Current measurement
Type of current AC
Type of product Split core
Internal diameter 14x15
Seconday Output Voltage
Accuracy class 1
Type of connection RJ12
Conformity to standards
  • IEC 61557-12
  • UL 61010
Customisable No
Technical Characteristics - Electrical
Intermittent overload 10x In for 1s
Max voltage (Phase/neutral) 300
Rated withstand voltage 3kV
Technical Characteristics - Environmental
Maximum operating altitude 6560 feet / 2000 m
Measurement category CAT III
Operating temperature -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
Relative humidity 95% RH without condensation
Storage temperature -25 … +85 °C / -13 °F … +185 °F (IEC 60068-2-1/IEC 60068-2-2)
Technical Characteristics - Measurement
Accuracy class 0.5 for the global measurement chain (Associated with Digiware I, DIRIS B & DIRIS A)
Current rating range 40 ... 160 A
Current Sensor Secondary type 100mV
Current sensor type Split Core
Degree of Pollution IP20 / IK06
Frequency rating 50/60 Hz
Full measurement range 0.8 ... 192 A
ETIM - Electrical characteristics
Rated primary current [A] 160
Rated secondary current [A] 0.1
Rated secondary apparent power [VA] 0.1
Accuracy class 0.5
Overcurrent limiting factor FS 10
Calibrated Yes
ETIM - Mechanical characteristics
With contact protection Yes
Height opening [mm] 14..14
Width opening [mm] 14..14
Opening diameter [mm] 14
Snap mounting Yes
With copper rail Yes
Secondary connection Plug-in connection
ETIM - Technical features
Model Attachable current transformer
Number of primary inputs 1
Logistics
GTIN/EAN 3596033018343
Customs number 8504312990
Price unit PC
Weight of the packing unit [kg] 0.842
Length of the packing unit [m] 0.04
Width of the packing unit [m] 0.12
Depth of the packing unit [m] 0.12
Product Details
Effective date 2018-06-01
Offer Life Cycle Code 40
Country of origin FR
Classification
UNSPSC 83101808
ETIM Class EC002048
IGCC 6042
