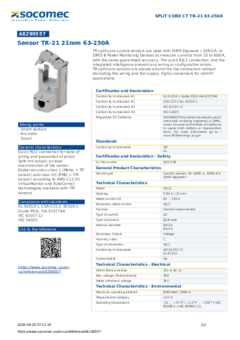

Strong Points
-
Smart sensors
-
Accurate
-
Smart
Function
TR split-core current sensors are used with DIRIS Digiware I, DIRIS A, or DIRIS B Power Monitoring Devices to measure currents from 25 to 600 A, with the same guaranteed accuracy. The quick RJ12 connection, and the integrated intelligence prevent, any wiring or configuration errors.
TR split-core sensors are placed around the live conductors without disrupting the wiring and the supply, highly convenient for retrofit applications.
Certificates and Declaration
| Conformity to standard #1 | UL 61010-1 Guide PICQ File E257746 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 61010-1 |
| Conformity to standard #3 | IEC 61557-12 |
| Conformity to standard #4 | ISO 14025 |
| Proposition 65 California | WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| UL file number | E257746 |
|---|
General Product Characteristics
| Device type | Current sensors for DIRIS A, DIRIS B & DIRIS Digiware I |
|---|
Technical Characteristics
| Model | TR-21 |
|---|---|
| Opening | 0.83 in / 21 mm |
| Rated current [A] | 63 ... 250 A |
| Secondary rated current | RJ12 |
Technical Characteristics - Electrical
| Intermittent overload | 10x In for 1s |
|---|---|
| Max voltage (Phase/neutral) | 300 |
| Rated withstand voltage | 3kV |
Technical Characteristics - Environmental
| Maximum operating altitude | 6560 feet / 2000 m |
|---|---|
| Measurement category | CAT III |
| Operating temperature | -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2) |
| Relative humidity | 95% RH without condensation |
| Storage temperature | -25 … +85 °C / -13 °F … +185 °F (IEC 60068-2-1/IEC 60068-2-2) |
Technical Characteristics - Measurement
| Accuracy class | 0.5 for the global measurement chain (Associated with Digiware I, DIRIS B & DIRIS A) |
|---|---|
| Current rating range | 63 ... 250 A |
| Current Sensor Secondary type | 100mV |
| Current sensor type | Split Core |
| Degree of Pollution | IP20 / IK06 |
| Frequency rating | 50/60 Hz |
| Full measurement range | 1.26 ... 300 A |
ETIM - Electrical characteristics
| Rated primary current [A] | 250 |
|---|---|
| Rated secondary current [A] | 0.1 |
| Rated secondary apparent power [VA] | 0.1 |
| Accuracy class | 0.5 |
| Overcurrent limiting factor | FS 10 |
| Calibrated | Yes |
ETIM - Mechanical characteristics
| With contact protection | Yes |
|---|---|
| Height opening [mm] | 21..21 |
| Width opening [mm] | 21..21 |
| Opening diameter [mm] | 21 |
| Snap mounting | Yes |
| With copper rail | Yes |
| Secondary connection | Plug-in connection |
ETIM - Technical features
| Model | Attachable current transformer |
|---|---|
| Number of primary inputs | 1 |
Logistics
| GTIN/EAN | 3596033018350 |
|---|---|
| Customs number | 8504312990 |
| Price unit | PC |
| Weight of the packing unit | 0.101 |
| Length of the packing unit | 0.065 |
| Width of the packing unit | 0.045 |
| Depth of the packing unit | 0.04 |
Product Details
| Effective date | 2018-06-01 |
|---|---|
| Country of origin | FR |
| Discount Policy | 1EN30 |
| Discount Policy Label | SENSORS |
Classification
| UNSPSC | 83101808 |
|---|---|
| ETIM Class | EC002048 |
| IGCC | 6042 |
