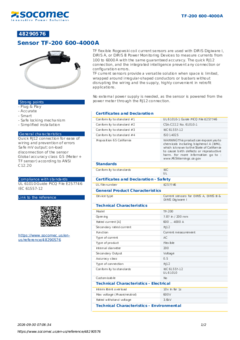

U3Ryb25nIFBvaW50cw==

  • UGx1ZyAmIFBsYXk=

  • QWNjdXJhdGU=

  • U21hcnQ=

  • U2FmZSBsb2NraW5nIG1lY2hhbmlzbQ==

  • U2ltcGxpZmllZCBpbnN0YWxsYXRpb24=

RnVuY3Rpb24=

VEYgZmxleGlibGUgUm9nb3dza2kgY29pbCBjdXJyZW50IHNlbnNvcnMgYXJlIHVzZWQgd2l0aCBESVJJUyBEaWdpd2FyZSBJLCBESVJJUyBBLCBvciBESVJJUyBCIFBvd2VyIE1vbml0b3JpbmcgRGV2aWNlcyB0byBtZWFzdXJlIGN1cnJlbnRzIGZyb20gMTAwIHRvIDYwMDAgQSB3aXRoIHRoZSBzYW1lIGd1YXJhbnRlZWQgYWNjdXJhY3kuIFRoZSBxdWljayBSSjEyIGNvbm5lY3Rpb24sIGFuZCB0aGUgaW50ZWdyYXRlZCBpbnRlbGxpZ2VuY2UgcHJldmVudCBhbnkgY29ubmVjdGlvbiBvciBjb25maWd1cmF0aW9uIGVycm9ycy48YnIgLz4NCiBURiBjdXJyZW50IHNlbnNvcnMgcHJvdmlkZSBhIHZlcnNhdGlsZSBzb2x1dGlvbiB3aGVuIHNwYWNlIGlzIGxpbWl0ZWQsIHdyYXBwZWQgYXJvdW5kIGlycmVndWxhci1zaGFwZWQgY29uZHVjdG9ycyBvciBidXNiYXJzIHdpdGhvdXQgZGlzcnVwdGluZyB0aGUgd2lyaW5nIGFuZCB0aGUgc3VwcGx5LCBoaWdobHkgY29udmVuaWVudCBpbiByZXRyb2ZpdCBhcHBsaWNhdGlvbnMuPGJyIC8+DQo8YnIgLz4NCk5vIGV4dGVybmFsIHBvd2VyIHN1cHBseSBpcyBuZWVkZWQsIGFzIHRoZSBzZW5zb3IgaXMgcG93ZXJlZCBmcm9tIHRoZSBwb3dlciBtZXRlciB0aHJvdWdoIHRoZSBSSjEyIGNvbm5lY3Rpb24u

Certificates and Declaration
Conformity to standard #1 UL 61010-1 Guide PICQ File E257746
Conformity to standard #2 CSA-C22.2 No. 61010-1
Conformity to standard #3 IEC 61557-12
Conformity to standard #4 ISO 14025
Proposition 65 California WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov
Standards
Conformity to standards
  • IEC
  • UL
Certificates and Declaration - Safety
UL file number E257746
General Product Characteristics
Device type Current sensors for DIRIS A, DIRIS B & DIRIS Digiware I
Technical Characteristics
Model TF-200
Opening 7.87 in / 200 mm
Rated current [A] 600 ... 4000 A
Secondary rated current RJ12
Technical Characteristics - Electrical
Intermittent overload 10x In for 1s
Max voltage (Phase/neutral) 600V
Rated withstand voltage 3.6kV
Technical Characteristics - Environmental
Maximum operating altitude 6560 feet / 2000 m
Measurement category CAT III
Operating temperature -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2)
Relative humidity 95% RH without condensation
Storage temperature -25 … +85 °C / -13 °F … +185 °F (IEC 60068-2-1/IEC 60068-2-2)
Technical Characteristics - Measurement
Accuracy class Class 0.5 in association with DIRIS Digiware I, DIRIS A, DIRIS B
Current rating range 600 ... 4000 A
Current Sensor Secondary type 100mV
Current sensor type Flexible TF current sensors
Degree of Pollution IP20/IK07
Frequency rating 50/60 Hz
Full measurement range 12 ... 4800 A
ETIM - Electrical characteristics
Rated primary current [A] 4000
Rated secondary current [A] 0.1
Rated secondary apparent power [VA] 0.1
Accuracy class 0.2S
Overcurrent limiting factor FS 10
Calibrated Yes
ETIM - Mechanical characteristics
With contact protection Yes
Height opening [mm] 200..200
Width opening [mm] 200..200
Opening diameter [mm] 200
Snap mounting Yes
With copper rail Yes
Secondary connection Plug-in connection
ETIM - Technical features
Model Attachable current transformer
Number of primary inputs 1
Logistics
GTIN/EAN 3596033018718
Customs number 8504312990
Price unit PC
Weight of the packing unit 0.185
Length of the packing unit 0.03
Width of the packing unit 0.24
Depth of the packing unit 0.24
Product Details
Effective date 2017-12-01
Country of origin IT
Classification
UNSPSC 83101808
ETIM Class EC002048
IGCC 6042
