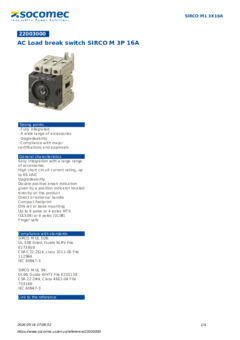

Strong Points

  • View more Created with sketchtool.

    Fully integrated

  • View more Created with sketchtool.

    A wide range of accessories

  • View more Created with sketchtool.

    Upgradeability

  • View more Created with sketchtool.

    Compliance with major certifications and approvals

Function

SIRCO M non-fusible disconnect switches are compact switches. They make and break under on and off-load conditions and provide safe isolation. These extremely durable switches are tested and approved for use in the most demanding applications. UL 98 disconnect switches are rated as a branch circuit disconnect switch. They can be used in a variety of applications for general use - range from 30 to 100 A. UL 508 disconnect switches are as a motor-rated disconnect or local disconnect. They can be used as motor controllers - range from 16 to 100 A.

=-=-=-=-=-=- System =-=-=-=-=-=-
Fill rate E-Order Common 86
Fill rate E-Order Selection 100
Certificates and Declaration
Conformity to standard #1 UL508
Conformity to standard #2 CSA-C22.2 No.14
Conformity to standard #3 IEC 60947-3
Conformity to standard #4 Class 3211 05
Proposition 65 California WARNING This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov
Standards
Conformity to standards
  • IEC
  • UL
Certificates and Declaration - Safety
UL file number E173959
Technical Characteristics
Control operator Direct : M00 / External : S00, S0, S01
Number of poles 3
Rated voltage 600 VAC
Rated current [A] 16
Type Rotary
Frame size M1
Technical Characteristics - Connection terminals
Max. connection section / AWG #4 or 2x#12
Min. connection section / AWG #14 or 2x#14
Technical Characteristics - Environmental
Operating temperature -4 ... +122°F / -20 ... +50°C
Storage temperature -40 ... +158°F / -40 ... +70°C
Technical Characteristics - Max. motor HP
FLA 3 ph motor max. / 208 VAC 3/0.6
FLA 3 ph motor max. / 220-240 VAC 5/15.2
FLA 3 ph motor max. / 440-480 VAC 10/14
FLA 3 ph motor max. / 600 VAC 10/11
Technical Characteristics - Mechanical
Endurance (number of operating cycles) 10000
Operating torque [lbs.in/Nm] 7/0.8
Technical Characteristics - Short-circuit capacity
Auxiliary contacts / Electrical characteristics A300
Max fuse rating [A] 30
Operation voltage 2 P - 3/4 P 600VAC
Short circuit rating at 600 VAC [kA] 65
Type of fuse J
UL General use rating 16
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V] 690
Rated operating voltage [V] 400..690
Rated permanent current Iu [A] 16
Rated permanent current at AC-23, 400 V [A] 16
Rated permanent current at AC-21, 400 V [A] 16
Rated short-time withstand current lcw [kA] 1.26
Rated operation power at AC-23, 400 V [kW] 7.5
Switching power at 400 V [kW] 7.5
Conditioned rated short-circuit current Iq [kA] 50
Number of poles 3
ETIM - Mechanical characteristics
Suitable for floor mounting No
Suitable for front mounting 4-hole No
Suitable for front mounting centre No
Suitable for distribution board installation Yes
Suitable for intermediate mounting Yes
Colour control element Other
Degree of protection (IP), front side IP20
ETIM - Technical features
Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation Yes
Version as reversing switch No
Number of switches 1
Motor drive optional No
Motor drive integrated No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Type of control element Other
Interlockable Yes
Type of electrical connection of main circuit Screw connection
Logistics
GTIN/EAN 3596031825363
Customs number 8536508090
Price unit PC
Weight of the packing unit 0.21
Length of the packing unit 0.055
Width of the packing unit 0.1
Depth of the packing unit 0.08
Product Details
Effective date 2006-04-13
Country of origin CN
Discount Policy 1CA12
Discount Policy Label SIRCO M1 to M3
Length of the product unit 0.068
Width of the product unit 0.045
Depth of the product unit 0.064
Weight 0.21
Classification
UNSPSC 39122233
ETIM Class EC000216
IGCC 5290
