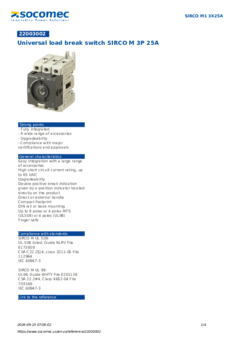

U3Ryb25nIFBvaW50cw==

  • RnVsbHkgaW50ZWdyYXRlZA==

  • QSB3aWRlIHJhbmdlIG9mIGFjY2Vzc29yaWVz

  • VXBncmFkZWFiaWxpdHk=

  • Q29tcGxpYW5jZSB3aXRoIG1ham9yIGNlcnRpZmljYXRpb25zIGFuZCBhcHByb3ZhbHM=

RnVuY3Rpb24=

U0lSQ08gTSBub24tZnVzaWJsZSBkaXNjb25uZWN0IHN3aXRjaGVzIGFyZSBjb21wYWN0IHN3aXRjaGVzLiBUaGV5IG1ha2UgYW5kIGJyZWFrIHVuZGVyIG9uIGFuZCBvZmYtbG9hZCBjb25kaXRpb25zIGFuZCBwcm92aWRlIHNhZmUgaXNvbGF0aW9uLiBUaGVzZSBleHRyZW1lbHkgZHVyYWJsZSBzd2l0Y2hlcyBhcmUgdGVzdGVkIGFuZCBhcHByb3ZlZCBmb3IgdXNlIGluIHRoZSBtb3N0IGRlbWFuZGluZyBhcHBsaWNhdGlvbnMuIFVMIDk4wqBkaXNjb25uZWN0IHN3aXRjaGVzIGFyZSByYXRlZCBhcyBhIGJyYW5jaCBjaXJjdWl0IGRpc2Nvbm5lY3Qgc3dpdGNoLiBUaGV5IGNhbiBiZSB1c2VkIGluIGEgdmFyaWV0eSBvZiBhcHBsaWNhdGlvbnMgZm9yIGdlbmVyYWwgdXNlIC0gcmFuZ2XCoGZyb20gMzAgdG8gMTAwIEEuIFVMIDUwOCBkaXNjb25uZWN0IHN3aXRjaGVzIGFyZSBhcyBhIG1vdG9yLXJhdGVkIGRpc2Nvbm5lY3Qgb3IgbG9jYWwgZGlzY29ubmVjdC7CoFRoZXkgY2FuIGJlIHVzZWQgYXMgbW90b3IgY29udHJvbGxlcnPCoC0gcmFuZ2XCoGZyb20gMTYgdG8gMTAwIEEu

Certificates and Declaration

Conformity to standard #1 UL508
Conformity to standard #2 CSA-C22.2 No.14
Conformity to standard #3 IEC 60947-3
Conformity to standard #4 Class 3211 05
Proposition 65 California WARNING This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov

Environmental Sustainability

PEP Filename SOCO-00095-V01.01-EN.pdf
Climate change - Total - Cradle to Grave [kg CO₂ eq.] 9
Climate change - Total - Cradle to Gate [kg CO₂ eq.] 2

Standards

Conformity to standards
  • IEC
  • UL

Certificates and Declaration - Safety

UL file number E173959

Technical Characteristics

Length of the product unit [mm] 68
Width of the product unit [mm] 45
Depth of the product unit [mm] 64
Weight [kg] 0.21
Control operator Direct : M00 / External : S00, S0, S01
Number of poles 3
Rated voltage 600 VAC
Rated current [A] 25
Type Rotary
Frame size M1

Technical Characteristics - Connection terminals

Max. connection section / AWG #4 or 2x#12
Min. connection section / AWG #14 or 2x#14

Technical Characteristics - Environmental

Operating temperature -4 ... +122°F / -20 ... +50°C
Storage temperature -40 ... +158°F / -40 ... +70°C

Technical Characteristics - Max. motor HP

FLA 3 ph motor max. / 208 VAC [Hp/A] 7.5/24.2
FLA 3 ph motor max. / 220-240 VAC [Hp/A] 7.5/22
FLA 3 ph motor max. / 440-480 VAC [Hp/A] 15/21
FLA 3 ph motor max. / 600 VAC [Hp/A] 20/22

Technical Characteristics - Mechanical

Endurance (number of operating cycles) 10000
Operating torque [lbs.in/Nm] 7/0.8

Technical Characteristics - Short-circuit capacity

Auxiliary contacts / Electrical characteristics A300
Max fuse rating [A] 30
Operation voltage 2 P - 3/4 P 600VAC
Short circuit rating at 600 VAC [kA] 65
Type of fuse J
UL General use rating [A] 25

ETIM - Electrical characteristics

Max. rated operation voltage Ue AC [V] 690
Rated operating voltage [V] 400..690
Rated permanent current Iu [A] 25
Rated permanent current at AC-23, 400 V [A] 25
Rated permanent current at AC-21, 400 V [A] 25
Rated short-time withstand current lcw [kA] 1.26
Rated operation power at AC-23, 400 V [kW] 11
Switching power at 400 V [kW] 11
Conditioned rated short-circuit current Iq [kA] 50
Number of poles 3

ETIM - Mechanical characteristics

Suitable for floor mounting No
Suitable for front mounting 4-hole No
Suitable for front mounting centre No
Suitable for distribution board installation Yes
Suitable for intermediate mounting Yes
Colour control element Other
Degree of protection (IP), front side IP20

ETIM - Technical features

Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation Yes
Version as reversing switch No
Number of switches 1
Motor drive optional No
Motor drive integrated No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Type of control element Other
Interlockable Yes
Type of electrical connection of main circuit Screw connection

Logistics

GTIN/EAN 3596031825394
Customs number 8536508000
Price unit PC
Weight of the packing unit [kg] 0.21
Length of the packing unit [m] 0.1
Width of the packing unit [m] 0.06
Depth of the packing unit [m] 0.084

Product Details

Effective date 2006-04-13
Offer Life Cycle Code 40
Country of origin CN

Classification

UNSPSC 39122233
ETIM Class EC000216
IGCC 5290
