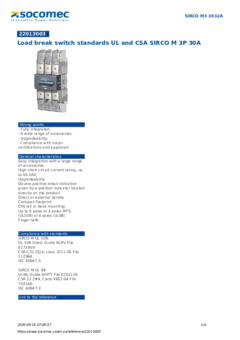

Certificates and Declaration
| Conformity to standard #1 | UL98 |
|---|---|
| Conformity to standard #2 | CSA |
| Conformity to standard #3 | Class 4651 02 |
| Proposition 65 California | WARNING This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| UL file number | E201138 |
|---|
Technical Characteristics
| Height [mm] | 189 |
|---|---|
| Width [mm] | 78 |
| Depth [mm] | 75 |
| Weight [kg] | 0.63 |
| Control operator | Direct : M01 / External : S00, S0, S01 |
| Number of poles | 3 |
| Rated voltage | 600 VAC |
| Rated current [A] | 30 |
| Type | Rotary |
| Frame size | M3 |
Technical Characteristics - Connection terminals
| Max. connection section / AWG | 2/0 or 2x#1 |
|---|---|
| Min. connection section / AWG | #10 or 2x#10 |
Technical Characteristics - Environmental
| Operating temperature | -4 ... +122°F / -20 ... +50°C |
|---|---|
| Storage temperature | -40 ... +158°F / -40 ... +70°C |
Technical Characteristics - Max. motor HP
| FLA 3 ph motor max. / 220-240 VAC [Hp/A] | 10/28 |
|---|---|
| FLA 3 ph motor max. / 440-480 VAC [Hp/A] | 20/27 |
| FLA 3 ph motor max. / 600 VAC [Hp/A] | 25/27 |
Technical Characteristics - Mechanical
| Endurance (number of operating cycles) | 10000 |
|---|---|
| Operating torque [lbs.in/Nm] | 12.4/1.4 |
Technical Characteristics - Short-circuit capacity
| Auxiliary contacts / Electrical characteristics | A300 |
|---|---|
| Max fuse rating [A] | 30 |
| Operation voltage 2 P - 3/4 P | 600VAC |
| Short circuit rating at 600 VAC [kA] | 100 |
| Type of fuse | J |
| UL General use rating [A] | 30 |
ETIM - Electrical characteristics
| Max. rated operation voltage Ue AC [V] | 690 |
|---|---|
| Rated operating voltage [V] | 400..690 |
| Rated permanent current Iu [A] | 30 |
| Rated permanent current at AC-23, 400 V [A] | 30 |
| Rated permanent current at AC-21, 400 V [A] | 30 |
| Rated short-time withstand current lcw [kA] | 2.75 |
| Rated operation power at AC-23, 400 V [kW] | 30 |
| Switching power at 400 V [kW] | 30 |
| Conditioned rated short-circuit current Iq [kA] | 50 |
| Number of poles | 3 |
ETIM - Mechanical characteristics
| Suitable for floor mounting | No |
|---|---|
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Colour control element | Other |
| Degree of protection (IP), front side | IP20 |
| Width [mm] | 78 |
| Height [mm] | 189 |
| Depth [mm] | 75 |
ETIM - Technical features
| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | Yes |
| Version as reversing switch | No |
| Number of switches | 1 |
| Motor drive optional | No |
| Motor drive integrated | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
Logistics
| GTIN/EAN | 3596031973736 |
|---|---|
| Customs number | 8536508000 |
| Price unit | PC |
| Weight of the packing unit [kg] | 0.63 |
| Length of the packing unit [m] | 0.09 |
| Width of the packing unit [m] | 0.09 |
| Depth of the packing unit [m] | 0.165 |
Product Details
| Effective date | 2009-09-07 |
|---|---|
| Offer Life Cycle Code | 40 |
| Country of origin | CN |
Classification
| UNSPSC | 39122233 |
|---|---|
| ETIM Class | EC000216 |
| IGCC | 5290 |
