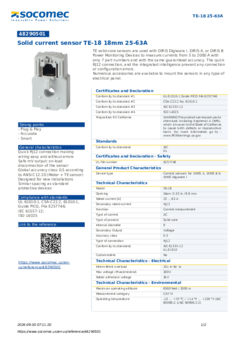

Certificates and Declaration
| Conformity to standard #1 | UL 61010-1 Guide PICQ File E257746 |
|---|---|
| Conformity to standard #2 | CSA-C22.2 No. 61010-1 |
| Conformity to standard #3 | IEC 61557-12 |
| Conformity to standard #4 | ISO 14025 |
| Proposition 65 California | WARNING This product can expose you to chemicals including bisphenol A (BPA), which is known to the State of California to cause birth defects or reproductive harm. For more information go to : www.P65Warnings.ca.gov |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| UL file number | E257746 |
|---|
General Product Characteristics
| Device type | Current sensors for DIRIS A, DIRIS B & DIRIS Digiware I |
|---|
Technical Characteristics
| Model | TE-18 |
|---|---|
| Opening | Diam. 0.33 in / 8.6 mm |
| Rated current [A] | 25 ... 63 A |
| Secondary rated current | RJ12 |
| Function | Current measurement |
| Type of current | AC |
| Type of product | Solid core |
| Internal diameter | 9 |
| Secondary Output | Voltage |
| Accuracy class | 0.5 |
| Type of connection | RJ12 |
| Conformity to standards |
|
| Customisable | No |
Technical Characteristics - Electrical
| Intermittent overload | 10x In for 1s |
|---|---|
| Max voltage (Phase/neutral) | 300V |
| Rated withstand voltage | 3kV |
Technical Characteristics - Environmental
| Maximum operating altitude | 6560 feet / 2000 m |
|---|---|
| Measurement category | CAT III |
| Operating temperature | -10 … +70 °C / +14 °F … +158 °F (IEC 60068-2-1/IEC 60068-2-2) |
| PEP ecopassport - ISO 14025 | SOCO-2014-03-v1-fr, SOCO-2014-03-v1-en |
| Relative humidity | 95% RH without condensation |
| Storage temperature | -25 … +85 °C / -13 °F … +185 °F (IEC 60068-2-1/IEC 60068-2-2) |
Technical Characteristics - Measurement
| Accuracy class | 0.5 for the global measurement chain (Associated with Digiware I, DIRIS B & DIRIS A) |
|---|---|
| Current rating range | 25 … 63 A |
| Current Sensor Secondary type | 100mV |
| Current sensor type | Solid Core |
| Degree of Pollution | IP20 / IK06 |
| Frequency rating | 50/60 Hz |
| Full measurement range | 0.5 … 75 A |
ETIM - Electrical characteristics
| Rated primary current [A] | 63 |
|---|---|
| Rated secondary current [A] | 0.1 |
| Rated secondary apparent power [VA] | 0.1 |
| Accuracy class | 0.2S |
| Overcurrent limiting factor | FS 10 |
| Calibrated | Yes |
ETIM - Mechanical characteristics
| With contact protection | Yes |
|---|---|
| Height opening [mm] | 8.6..8.6 |
| Width opening [mm] | 8.6..8.6 |
| Opening diameter [mm] | 8.6 |
| Snap mounting | Yes |
| With copper rail | Yes |
| Secondary connection | Plug-in connection |
ETIM - Technical features
| Model | Through-feed current converter |
|---|---|
| Number of primary inputs | 1 |
Logistics
| GTIN/EAN | 3596032776473 |
|---|---|
| Customs number | 8504312990 |
| Price unit | PC |
| Weight of the packing unit [kg] | 0.03 |
| Length of the packing unit [m] | 0.015 |
| Width of the packing unit [m] | 0.11 |
| Depth of the packing unit [m] | 0.13 |
Product Details
| Effective date | 2013-11-22 |
|---|---|
| Offer Life Cycle Code | 40 |
| Country of origin | FR |
Classification
| UNSPSC | 83101808 |
|---|---|
| ETIM Class | EC002048 |
| IGCC | 6042 |
