Strong Points
Function
TE solid-core sensors are used with DIRIS Digiware I, DIRIS A, or DIRIS B Power Monitoring Devices to measure currents from 5 to 2000 A with only 7 part numbers and with the same guaranteed accuracy. The quick RJ12 connection, and the integrated intelligence prevent any connection or configuration errors.
Numerous accessories are available to mount the sensors in any type of electrical panel.
References
TE solid-core sensors is available in 7 versions
| Item | Model | Opening | Rated current [A] | Secondary rated current | Select |
|---|---|---|---|---|---|
| 48290500 | TE-18 | Diam. 0.33 in / 8.6 mm | 5 ... 20 A | RJ12 | |
| 48290501 | TE-18 | Diam. 0.33 in / 8.6 mm | 25 ... 63 A | RJ12 | |

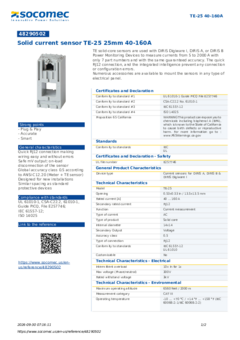

| 48290502 | TE-25 | 0.53x0.53 in / 13.5x13.5 mm | 40 ... 160 A | RJ12 | |
| 48290503 | TE-35 | 0.82x0.82 in / 21x21 mm | 63 ... 250 A | RJ12 | |
| 48290504 | TE-45 | 1.22x1.22 in / 31x31 mm | 160 ... 630 A | RJ12 | |
| 48290505 | TE-55 | 1.61 x 1.61 in / 41 x 41 mm | 400 ... 1000 A | RJ12 | |
| 48290506 | TE-90 | 2.52 x 2.52 in / 64 x 64 mm | 600 ... 2000 A | RJ12 |
Advantages
Plug & Play
- RJ12 concept for a quick and reliable connection to the power meter.
- Color-coded RJ12 cables provides easy phase identification to prevent phase inversions.
- Automatic detection of current sensor type and rating.
- Low-voltage mV output - No shorting blocks are needed, TE sensors can be disconnected safely under load.
Accurate
- Unique PreciSense technology guaranteeing system accuracy according to IEC 61557-12 standard.
- Class 0.5 system accuracy (Power Meter + TE current sensor) from 2% to 120% of rated current.
Smart
Any wiring mishap, whether it’s a phase inversion, a wrong orientation or a configuration error can be corrected via software. Save time, effort and resources, avoiding the hassle of reworking physical wiring on current sensors.
PreciSense technology
Be guaranteed of the accuracy of your measurements
Environmental data
Eco-design for consumption that’s up to 20 times lower.
RoHS compliant
PEP ecopassport® available
