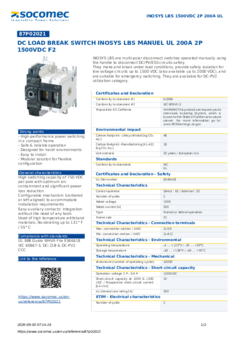

Function
INOSYS LBS are multi-polar disconnect switches operated manually using the handle to disconnect DC/PV/ESS circuits safely.
They make and break under load conditions, provide safety isolation for low voltage circuits up to 1500 VDC, and are suitable for emergency switching.
=-=-=-=-=-=- System =-=-=-=-=-=-
Fill rate E-Order Common | 29 |
---|---|
Fill rate E-Order Selection | 78 |
Certificates and Declaration
Conformity to standard #1 | UL98B |
---|---|
Conformity to standard #2 | IEC 60947-3 |
Proposition 65 California | WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov |
Standards
Conformity to standards |
|
---|
Certificates and Declaration - Safety
UL file number | E346418 |
---|
Technical Characteristics
Control operator | Direct : E2 / External : S2 |
---|---|
Number of poles | 2 |
Rated voltage | 1500 |
Rated current [A] | 200 |
Type | Frontal or lateral operation |
Frame size | F2 |
Technical Characteristics - Connection terminals
Max. connection section / AWG | 2x2/0 |
---|---|
Min. connection section / AWG | 2x#12 |
Technical Characteristics - Environmental
Operating temperature | -4 ... +122°F / -20 ... +50°C |
---|---|
Storage temperature | -40 ... +158°F / -40 ... +70°C |
Technical Characteristics - Mechanical
Endurance (number of operating cycles) | 10000 |
---|
Technical Characteristics - Short-circuit capacity
Operation voltage 2 P - 3/4 P | 1500VDC |
---|---|
Short-circuit capacity at 1000 & 1500 VDC / Prospective short-circuit current | 10 |
UL General use rating | 200 |
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V] | 1500 |
---|---|
Rated operating voltage [V] | 600..1500 |
Rated permanent current Iu [A] | 200 |
Number of poles | 2 |
ETIM - Mechanical characteristics
Suitable for floor mounting | No |
---|---|
Suitable for front mounting 4-hole | Yes |
Suitable for front mounting centre | No |
Suitable for distribution board installation | Yes |
Suitable for intermediate mounting | Yes |
Colour control element | Other |
Degree of protection (IP), front side | IP20 |
ETIM - Technical features
Version as main switch | Yes |
---|---|
Version as maintenance-/service switch | Yes |
Version as safety switch | Yes |
Version as emergency stop installation | Yes |
Version as reversing switch | No |
Number of switches | 1 |
Motor drive optional | No |
Motor drive integrated | No |
Voltage release optional | No |
Device construction | Built-in device fixed built-in technique |
Type of control element | Other |
Interlockable | Yes |
Type of electrical connection of main circuit | Bolt connection |
Logistics
GTIN/EAN | 3596033076145 |
---|---|
Customs number | 8535301090 |
Price unit | PC |
Weight of the packing unit | 0.01 |
Product Details
Effective date | 2018-09-19 |
---|---|
Country of origin | TN |
Discount Policy | 1CD40 |
Discount Policy Label | INOSYS LBS PV MANUAL |
Classification
UNSPSC | 39122233 |
---|---|
ETIM Class | EC000216 |
IGCC | 5290 |
