U3Ryb25nIFBvaW50cw==
-
SGlnaC1wZXJmb3JtYW5jZSBwb3dlciBzd2l0Y2hpbmcgaW4gYSBjb21wYWN0IGZyYW1l
-
U2FmZSAmIHJlbGlhYmxlIG9wZXJhdGlvbg==
-
RGVzaWduZWQgZm9yIGhhcnNoIGVudmlyb25tZW50cw==
-
RWFzeSB0byBpbnN0YWxs
-
TW9kdWxhciBzb2x1dGlvbiBmb3IgZmxleGlibGUgY29uZmlndXJhdGlvbg==
RnVuY3Rpb24=

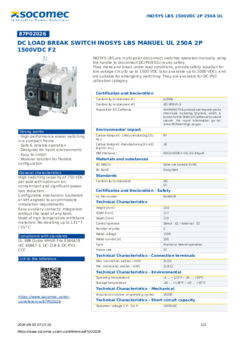

Certificates and Declaration
| Conformity to standard #1 | UL98B |
|---|---|
| Conformity to standard #2 | IEC 60947-3 |
| Proposition 65 California | WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov |
Environmental Sustainability
| Climate change - Total - Cradle to Grave [kg CO₂ eq.] | 97 |
|---|---|
| Climate change - Total - Cradle to Gate [kg CO₂ eq.] | 18 |
| SVHC > 0.1 mass percentage? | No |
| RoHS applicable? | Yes |
Standards
| Conformity to standards |
|
|---|
Certificates and Declaration - Safety
| UL file number | E346418 |
|---|
Technical Characteristics
| Height [mm] | 154 |
|---|---|
| Width [mm] | 117 |
| Depth [mm] | 110 |
| Control operator | Direct : E2 / External : S2 |
| Number of poles | 2 |
| Rated voltage | 1500 |
| Rated current [A] | 250 |
| Type | Frontal or lateral operation |
| Frame size | F2 |
Technical Characteristics - Connection terminals
| Max. connection section / AWG | 2x2/0 |
|---|---|
| Min. connection section / AWG | 2x#12 |
Technical Characteristics - Environmental
| Operating temperature | -4 ... +122°F / -20 ... +50°C |
|---|---|
| Storage temperature | -40 ... +158°F / -40 ... +70°C |
Technical Characteristics - Mechanical
| Endurance (number of operating cycles) | 10000 |
|---|
Technical Characteristics - Short-circuit capacity
| Operation voltage 2 P - 3/4 P | 1500VDC |
|---|---|
| Short-circuit capacity at 1000 & 1500 VDC / Prospective short-circuit current [kA rms] | 10 |
| UL General use rating [A] | 250 |
ETIM - Electrical characteristics
| Number of poles | 2 |
|---|
ETIM - Mechanical characteristics
| Suitable for floor mounting | No |
|---|---|
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Colour control element | Other |
| Degree of protection (IP), front side | IP20 |
| Width [mm] | 117 |
| Height [mm] | 154 |
| Depth [mm] | 110 |
ETIM - Technical features
| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | Yes |
| Version as reversing switch | No |
| Number of switches | 1 |
| Device construction | Built-in device fixed built-in technique |
| Voltage release optional | No |
| Type of control element | Other |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Bolt connection |
Logistics
| GTIN/EAN | 3596033028205 |
|---|---|
| Customs number | 8535301090 |
| Price unit | PC |
| Weight of the packing unit [kg] | 2.56 |
| Length of the packing unit [m] | 0.165 |
| Width of the packing unit [m] | 0.39 |
| Depth of the packing unit [m] | 0.2 |
Product Details
| Effective date | 2018-11-01 |
|---|---|
| Offer Life Cycle Code | 40 |
| Country of origin | TN |
Classification
| UNSPSC | 39122233 |
|---|---|
| ETIM Class | EC004963 |
| IGCC | 5290 |
