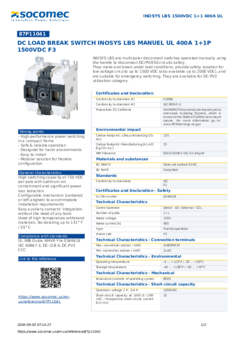

U3Ryb25nIFBvaW50cw==
-
SGlnaC1wZXJmb3JtYW5jZSBwb3dlciBzd2l0Y2hpbmcgaW4gYSBjb21wYWN0IGZyYW1l
-
U2FmZSAmIHJlbGlhYmxlIG9wZXJhdGlvbg==
-
RGVzaWduZWQgZm9yIGhhcnNoIGVudmlyb25tZW50cw==
-
RWFzeSB0byBpbnN0YWxs
-
TW9kdWxhciBzb2x1dGlvbiBmb3IgZmxleGlibGUgY29uZmlndXJhdGlvbg==
RnVuY3Rpb24=
Certificates and Declaration
Conformity to standard #1 | UL98B |
---|---|
Conformity to standard #2 | IEC 60947-3 |
Proposition 65 California | WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov |
Environmental Sustainability
PEP Filename | SOCO-00067-V01.02-EN.pdf |
---|---|
Climate change - Total - Cradle to Grave [kg CO₂ eq.] | 155 |
Climate change - Total - Cradle to Gate [kg CO₂ eq.] | 25 |
Standards
Conformity to standards |
|
---|
Certificates and Declaration - Safety
UL file number | E346418 |
---|
Technical Characteristics
Control operator | Direct : E3 / External : S2L |
---|---|
Number of poles | 1+1 |
Rated voltage | 1500 |
Rated current [A] | 400 |
Type | Frontal operation |
Frame size | F3 |
Technical Characteristics - Connection terminals
Max. connection section / AWG | 2x600MCM |
---|---|
Min. connection section / AWG | 2x#2 |
Technical Characteristics - Environmental
Operating temperature | -4 ... +122°F / -20 ... +50°C |
---|---|
Storage temperature | -40 ... +158°F / -40 ... +70°C |
Technical Characteristics - Mechanical
Endurance (number of operating cycles) | 8000 |
---|
Technical Characteristics - Short-circuit capacity
Operation voltage 2 P - 3/4 P | 1500VDC |
---|---|
Short-circuit capacity at 1000 & 1500 VDC / Prospective short-circuit current [kA rms] | 10 |
UL General use rating [A] | 400 |
ETIM - Electrical characteristics
Number of poles | 2 |
---|
ETIM - Mechanical characteristics
Suitable for floor mounting | No |
---|---|
Colour control element | Other |
Suitable for front mounting 4-hole | Yes |
Suitable for front mounting centre | No |
Suitable for distribution board installation | Yes |
Suitable for intermediate mounting | Yes |
Degree of protection (IP), front side | IP20 |
ETIM - Technical features
Version as main switch | Yes |
---|---|
Version as maintenance-/service switch | Yes |
Version as safety switch | Yes |
Version as emergency stop installation | Yes |
Version as reversing switch | No |
Number of switches | 1 |
Device construction | Built-in device fixed built-in technique |
Voltage release optional | No |
Type of control element | Other |
Interlockable | Yes |
Type of electrical connection of main circuit | Bolt connection |
Logistics
GTIN/EAN | 3596033045042 |
---|---|
Customs number | 8535301090 |
Price unit | PC |
Weight of the packing unit [kg] | 3.62 |
Length of the packing unit [m] | 0.17 |
Width of the packing unit [m] | 0.2 |
Depth of the packing unit [m] | 0.385 |
Product Details
Effective date | 2018-08-01 |
---|---|
Offer Life Cycle Code | 40 |
Country of origin | TN |
Classification
UNSPSC | 39122233 |
---|---|
ETIM Class | EC000216 |
IGCC | 5290 |
