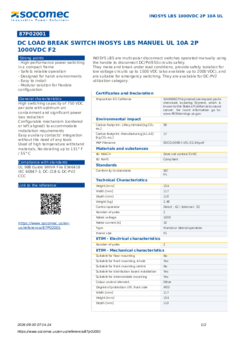

Function

INOSYS LBS are multi-polar disconnect switches operated manually using the handle to disconnect DC/PV/ESS circuits safely.
They make and break under load conditions, provide safety isolation for low voltage circuits up to 1500 VDC, and are suitable for emergency switching.

=-=-=-=-=-=- System =-=-=-=-=-=-
Fill rate E-Order Common 83
Fill rate E-Order Selection 78
Standards
Conformity to standards
  • IEC
  • UL
Technical Characteristics
Control operator Direct : E2 / External : S2
Number of poles 2
Rated voltage 1000
Rated current [A] 10
Type Frontal or lateral operation
Frame size F2
ETIM - Electrical characteristics
Max. rated operation voltage Ue AC [V] 1000
Rated operating voltage [V] 600..1000
Rated permanent current Iu [A] 10
Number of poles 2
ETIM - Mechanical characteristics
Suitable for floor mounting No
Suitable for front mounting 4-hole Yes
Suitable for front mounting centre No
Suitable for distribution board installation Yes
Suitable for intermediate mounting Yes
Colour control element Other
Degree of protection (IP), front side IP20
ETIM - Technical features
Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation Yes
Version as reversing switch No
Number of switches 1
Motor drive optional No
Motor drive integrated No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Type of control element Other
Interlockable Yes
Type of electrical connection of main circuit Bolt connection
Logistics
GTIN/EAN 3596032989026
Customs number 8535301090
Price unit PC
Weight of the packing unit 2.48
Length of the packing unit 0.17
Width of the packing unit 0.2
Depth of the packing unit 0.4
Product Details
Effective date 2016-11-22
Country of origin TN
Discount Policy 1CD40
Discount Policy Label INOSYS LBS PV MANUAL
Length of the product unit 0.154
Width of the product unit 0.117
Depth of the product unit 0.11
Weight 2.48
Classification
UNSPSC 39122233
ETIM Class EC000216
IGCC 5290
