Function

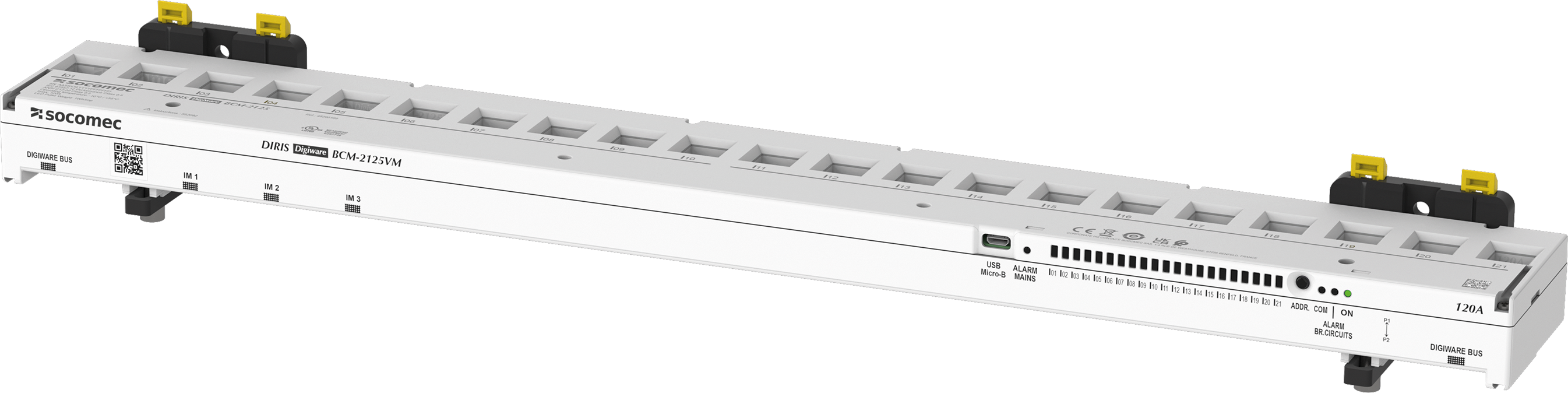

The DIRIS Digiware BCM is a multi-circuit metering module with 21 integrated sensors and allows individual circuit monitoring within any electrical panelboard (Remote Power Panel, lighting panel, power panel etc.). The DIRIS Digiware BCM is also equipped with three RJ12 channels connected to TE/TR/iTR/TF current sensors and ΔIC zero sequence CTs.
References
DIRIS Digiware BCM is available in 4 versions
| Item | Model | Pitch | Type | Maximum Current [A] | Number of current inputs | Select |
|---|---|---|---|---|---|---|
| 48290167 | BCM-2119 | 3/4in (19mm) | Without Breaker Status | 80 | 21 + 3x RJ12 | |
| 48290168 | BCM-2119VM | 3/4in (19mm) | With Breaker Status | 80 | 21 + 3x RJ12 | |
| 48290169 | BCM-2125 | 1in (25mm) | Without Breaker Status | 120 | 21 + 3x RJ12 | |
| 48290170 | BCM-2125VM | 1in (25mm) | With Breaker Status | 120 | 21 + 3x RJ12 |
Advantages
3x quicker to install than standard solutions
- The integrated current sensors do not require any wiring: they are directly integrated to the BCM meter strip.
- Quick RJ45 connection between modules.
- RJ12 connection for external current sensors.
- AutoCorrect technology detects wiring errors, even off-load.
2x quicker to configure than standard solutions
Easy Config System Software - free of charge – enables the configuration of multiple identical panels with a “duplication” function and also provides time-saving configuration templates enabling the initial design to be adapted with ease.
Minimal footprint
- No additional CT leads required - and therefore less cabling required.
- VirtualMonitor technology indicating breaker status eliminates the need to install auxiliary contacts.
- Connection to TE/TR/iTR/TF current sensors and ΔIC zero sequence CTs to mutualize power metering and earth leakage monitoring.
Maximum reliability
A robust protective plastic cover safeguards the electronic components and reduces the risk of breakage. By not simply being an exposed PCB, the unit can, therefore, be handled manually.
Breaker status
Integrated VirtualMonitor technology gives access to individual breaker status remotely and in real-time. No need for auxiliary contacts, VirtualMonitor uses a patented voltage sensing algorithm to provide a reliable breaker status indication, even under no load conditions.
Unrivaled accuracy
- PreciSense technology ensures accurate and reliable measurements over a wide measurement range: class 0.5 accuracy for active energy according to IEC 61557-12 and ANSI C12.20 standards, even under low load conditions (from 2% of 120% of the nominal current).
